Part Number: MC441441
Description: The MC441441 is a gated phaselocked loop intended for, but not restricted to, video applications. The ...
- Table of contents:
MC441441
-
Suppliers
DataSheet
General Description
MC441441 General Description
The MC441441 is a gated phaselocked loop intended for, but not restricted to, video applications. The integrated circuit contains a gated phase detector, voltage controlled crystal oscillator, divideby4 circuitry, and a video clamp. This device provides a 4X reference frequency output, and a 1X reference frequency output.
The MC441441 is manufactured using Motorola's high density, bipolar MOSAICE process.
MC441441 Maximum Ratings
| Rating | Symbol | Value | Unit |
| Supply Voltage | VCC | 6.0 | Vdc |
| Operating Ambient Temperature | TA | 0 to 70 | °C |
| Storage Temperature Range | Tstg | 65 to 150 | °C |
| Operating Junction Temperature | TJ | 150 | °C |
| NOTE: ESD data available upon request. | |||
MC441441 Features
• 8Pin DIP or Surface Mount Package
• GatedPhase Detector
• Single Pin Voltage Controlled Crystal Oscillator
• 1X and 4X Subcarrier Output
• Operates Off of a Standard 5.0 V Supply
• GatedPhase Detector
• Single Pin Voltage Controlled Crystal Oscillator
• 1X and 4X Subcarrier Output
• Operates Off of a Standard 5.0 V Supply

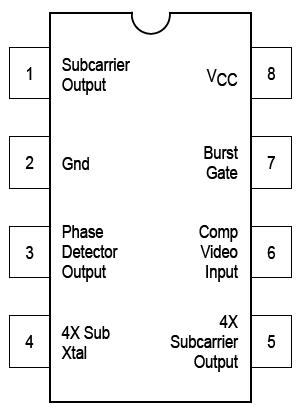

MC441441 Connection Diagram
