Five Points

Part Number: MC44722A

MFG: N/A

Package Cooled: QFP

D/C: 08+

Description: The MC44722A and MC44723A are advanced Digital Video Encoders (DVE). They convert ITU-601/656 standard...

MC44722A General Description

The MC44722A and MC44723A are advanced Digital Video Encoders (DVE). They convert ITU-601/656 standard 4:2:2 Bit- Paralellel data into analog composite video, S-Video or analog component signals Y/Cb/Cr in PAL and NTSC formats. They accept the multiplexed two 8-bit or 16-bit ((CB,Y,CR)Y) signals from digital sources such as MPEG decoders and can act as a sync generator master or as a sync slave. All video processing is done digitally and requires no external adjustment.

Specifically designed for digital satellite, digital cable decoders,multi media terminals and DVD players.

MC44722A Maximum Ratings

DC Supply Voltage	V_dd	-0.5~+7.0	V	Other
Input Voltage, All Inputs	V_in	-1.5~Vdd+1.5	V	-1.5 ~ Vdd+1.95V at Vdd=3.3V
Output Voltage, All Outputs	V_out	-0.5~Vdd+1.5	V
DC Output Current, per Pin	I_out	25	mA
Power Dissipation	P_d	75	mW
Storage Temperature	T_stg	-65 ~ +150

MC44722A Features

• World Wide Operation (PAL-BDGHI, PAL-N,PAL-M, NTSC-M)
• SMPTE 170M / ITU - R 624 composite video output
• Programmable Color Sub-carrier Frequencies
• Analog standard timing for Horizontal, Vertical, Frame and Composite Sync Outputs
• Sync Extraction From Digital Input Data (SAV, EAV)
• Sync Polarity and Horizontal / Vertical Phase Control
• Master or Slave Sync (H/Vsync, H/Fsync, ITU-R656 Slave) Operation
• Interlaced or Non-Interlaced Support
• 625/50 or 525/60 ITU-601/656 two 8-bit or 16-bit ((CB,Y,CR)Y) Digital Input
• Luma 2X / Chroma 4X Output interpolating Filter
• Dual Digital A / B selectable inputs
• External VBI Information Data Input (Teletext Information Data)
• Selectable One set of Signal within (CVBS/Y/C) or (Y/Cb/Cr)
• Selectable Analog Component Output ( Beta Cam or MII Component Interface Level )
• Three Analog Outputs Through 10-bit DACs
• Easily programmed via Serial Bus ( I2C or 4-Wired SPI Bus)
• 2 Hardware selectable I2C Chip Addresses
• Closed-Caption, CGMS and WSS Information data Insertion
• MACROVISION ver. 7.01 Anti-Copy Signal Insertion(MC44722A Only)
• On Chip Color - bar Generator
• 5V Tolerante Input
• +3.3V Power Supply or +3.3V(Digital)/+5V(Analog) Power Supply
• Pin Compatible with MC44722/3

The MC44722A device is protected by U.S. patent number 4,631,603,4,577,216 and 4,819,098 and other intellectual property rights. The use of Macrovision's copy protection technology in the device must be authorized by Macrovision and is intended for home and other limited payper- view uses only, unless otherwise authorized in writing by Macrovision. Reverse engineering or disassembly is prohibited

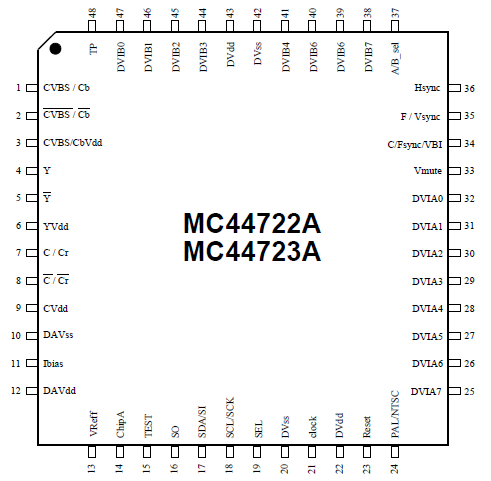

MC44722A Connection Diagram

MC44722A datasheet

MC44722A
PDF/DataSheet Download

Datasheet: MC44722A
File Size: 273248 KB
Manufacturer: MOTOROLA [Motorola, Inc]
Click here to Download
