MFG:MOTOROLA Package Cooled:SSOP14 D/C:06+/07+
MFG: MOTOROLA
Package Cooled: SSOP14
D/C: 06+/07+
Description: The MC44871 is a tuning circuit for TV, VCR and Multimedia tuner applications. This device contains on...
The MC44871 is a tuning circuit for TV, VCR and Multimedia tuner applications. This device contains on one chip all the functions required for PLL control of a VCO. This integrated circuit also contains a high frequency prescaler and thus can handle frequencies up to 1.3 GHz.
The MC44871 has an integrated dc/dc converter to generate the 30 V supply voltage for the tuning amplifier on the chip. A tuner using the MC44871 does not require an external 30 V supply.
The MC44871 is controlled by a I2C bus, and has a chip address function. The MC44871 data format is the same as the MC44818.
The MC44871 is manufactured on a single silicon chip using Motorola's high density bipolar process, MOSAICETM(Motorola Oxide Self Aligned Implanted Circuits).
|

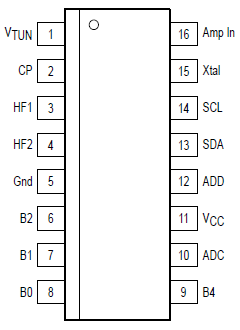

Rating |
Pin |
Value |
Unit |
| Power Supply Voltage (VCC) |
11 |
6.0 |
V |
| Storage Temperature |
- |
65 to +150 |
|
| Operating Temperature Range |
- |
20 to +85 |
|
| Operational Amplifier Output Voltage |
1 |
40 |
V |
| RF Input Level 80 MHz to 1.3 GHz |
3, 4 |
1.5 |
Vrms |
| NPN Band Buffer "Off" Voltage |
9 |
10 |
V |
| NPN Band Buffer "On" Current |
9 |
15 |
mA |
| PNP Band Buffer "Off" Voltage |
6, 7, 8 |
6.0 |
V |
| PNP Band Buffer "On" Current |
6, 7, 8 |
50 |
mA |
| PNP Band Buffer Short Circuit Duration (Note 1) |
6, 7, 8 |
Continuous |
- |
| Band Buffer Operation at 40 mA all PNP Buffers "On" |
6, 7, 8 |
10 |
s |
MC44871
PDF/DataSheet Download
