Part Number: MC54HC4066A
Description: The MC54/74HC4066A utilizes silicongate CMOS technology to achieve fast propagation delays, low ON res...
- Table of contents:
MC54HC4066A
-
Suppliers
DataSheet
General Description
MC54HC4066A General Description
The MC54/74HC4066A utilizes silicongate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFF channel leakage current. This bilateral switch/multiplexer/demultiplexer controls analog and digital voltages that may vary across the full powersupply range (from VCC to GND).
The HC4066A is identical in pinout to the metalgate CMOS MC14016 and MC14066. Each device has four independent switches. The device has been designed so that the ON resistances (RON) are much more linear over input voltage than RON of metalgate CMOS analog switches. The ON/OFF control inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. For analog switches with voltagelevel translators, see the HC4316A.
MC54HC4066A Maximum Ratings
| Symbol | Parameter | Value | Unit |
| vcc | DC Supply Voltage (Referenced to GND) | 0.5 to +7.0 | V |
| VIN | DC Input Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| VOUT | DC Output Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| LIN | DC Input Current, per Pin | ±20 | mA |
| IOUT | DC Onput Current, per Pin | ±35 | mA |
| ICC | DC Supply Current Per Supply Pin | ±75 | mA |
| PD | Power dissipation in still air piastic DIP SOIC package |
750 500 450 |
mW |
| TSTG | Storage Temperature | 65 to +150 | °C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package) |
260 300 |
°C |
Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - Plastic DIP: 10 mW/C from 65 to 125C
Ceramic DIP: 10 mW/C from 100 to 125C
SOIC Package: 7 mW/C from 65 to 125C
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).
MC54HC4066A Features
• Fast Switching and Propagation Speeds
• High ON/OFF Output Voltage Ratio
• Low Crosstalk Between Switches
• Diode Protection on All Inputs/Outputs
• Wide PowerSupply Voltage Range (VCC GND) = 2.0 to 12.0 Volts
• Analog Input Voltage Range (VCC GND) = 2.0 to 12.0 Volts
• Improved Linearity and Lower ON Resistance over Input Voltage than the MC14016 or MC14066
• Low Noise
• Chip Complexity: 44 FETs or 11 Equivalent Gates
• High ON/OFF Output Voltage Ratio
• Low Crosstalk Between Switches
• Diode Protection on All Inputs/Outputs
• Wide PowerSupply Voltage Range (VCC GND) = 2.0 to 12.0 Volts
• Analog Input Voltage Range (VCC GND) = 2.0 to 12.0 Volts
• Improved Linearity and Lower ON Resistance over Input Voltage than the MC14016 or MC14066
• Low Noise
• Chip Complexity: 44 FETs or 11 Equivalent Gates

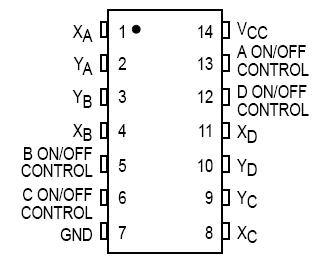

MC54HC4066A Connection Diagram
MC54HC4066A
