Purchase MC68HC08SR12, In-stock MC68HC08SR12 From SeekIC.
Part Number: MC68HC08SR12
Description: The MC68HC908SR12 is a member of the low-cost, high-performance M68HC08 Family of 8...
- Table of contents:
MC68HC08SR12
-
Suppliers
DataSheet
General Description
MC68HC08SR12 General Description
The MC68HC908SR12 is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units (MCUs). The M68HC08 Family is based on the customer-specified integrated circuit (CSIC) design strategy. All MCUs in the family use the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types.
MC68HC08SR12 Maximum Ratings
| Characteristic(1) | Symbol | Value | Value |
| Supply voltage | VDD | 0.3 to +6.0 | V |
| Input voltage All pins (except IRQ1) IRQ1 pin |
VIn | VSS0.3 to VDD +0.3 VSS0.3 to 8.5 |
V |
| Maximum current per pin excluding VDD and VSS |
I | ±25 | mA |
| Maximum current out of VSS | IMVSS | 100 | mA |
| Maximum current into VDD | IMVDD | 100 | mA |
| Storage temperature | TSTG | 55 to +150 | °C |
MC68HC08SR12 Features
• Features of the MC68HC908SR12 include the following:
• High-performance M68HC08 architecture
• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families
• Maximum internal bus frequency:
8-MHz at 5V operating voltage
4-MHz at 3V operating voltage
• Clock input options:
RC-oscillator
32kHz crystal-oscillator with 32MHz internal phase-lock-loop
• 12k-bytes user program FLASH memory with security1 feature
• 512 bytes of on-chip RAM
• Two 16-bit, 2-channel timer interface modules (TIM1 and TIM2) with selectable input capture, output compare, and PWM capability on each channel
• Timebase module
• 3-channel, 8-bit high speed PWM (125kHz) with independent counters and automatic phase control
• Serial communications interface module (SCI)
• System Management Bus (SMBus), version 1.0/1.1 (Multi-master IIC bus)
• 14-channel, 10-bit analog-to-digital converter (ADC), with auto-scan mode for 4 channels
• Current sensor with programmable amplifier
• Temperature sensor (20°C to +70°C)
• IRQ1 external interrupt pin with integrated pullup
• IRQ2 external interrupt pin with programmable pullup
• 8-bit keyboard wakeup port with integrated pullup
• 31 general-purpose input/output (I/O) pins and 2 dedicated pins:
31 shared-function I/O pins
Two dedicated analog input pins
• Low-power design (fully static with Stop and Wait modes)
• Master reset pin (with integrated pullup) and power-on reset
• System protection features
Optional computer operating properly (COP) reset
Low-voltage detection with optional reset
Illegal opcode detection with reset
Illegal address detection with reset
• 48-pin low quad flat pack (LQFP) and 42-pin shrink dual-in-line package (SDIP)
• Specific features of the MC68HC908SR12 in 42-pin SDIP are:
29 general-purpose l/Os only
11-channel ADC only
• High-performance M68HC08 architecture
• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families
• Maximum internal bus frequency:
8-MHz at 5V operating voltage
4-MHz at 3V operating voltage
• Clock input options:
RC-oscillator
32kHz crystal-oscillator with 32MHz internal phase-lock-loop
• 12k-bytes user program FLASH memory with security1 feature
• 512 bytes of on-chip RAM
• Two 16-bit, 2-channel timer interface modules (TIM1 and TIM2) with selectable input capture, output compare, and PWM capability on each channel
• Timebase module
• 3-channel, 8-bit high speed PWM (125kHz) with independent counters and automatic phase control
• Serial communications interface module (SCI)
• System Management Bus (SMBus), version 1.0/1.1 (Multi-master IIC bus)
• 14-channel, 10-bit analog-to-digital converter (ADC), with auto-scan mode for 4 channels
• Current sensor with programmable amplifier
• Temperature sensor (20°C to +70°C)
• IRQ1 external interrupt pin with integrated pullup
• IRQ2 external interrupt pin with programmable pullup
• 8-bit keyboard wakeup port with integrated pullup
• 31 general-purpose input/output (I/O) pins and 2 dedicated pins:
31 shared-function I/O pins
Two dedicated analog input pins
• Low-power design (fully static with Stop and Wait modes)
• Master reset pin (with integrated pullup) and power-on reset
• System protection features
Optional computer operating properly (COP) reset
Low-voltage detection with optional reset
Illegal opcode detection with reset
Illegal address detection with reset
• 48-pin low quad flat pack (LQFP) and 42-pin shrink dual-in-line package (SDIP)
• Specific features of the MC68HC908SR12 in 42-pin SDIP are:
29 general-purpose l/Os only
11-channel ADC only

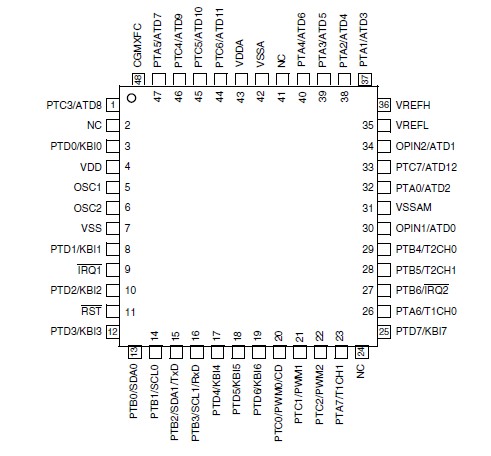

MC68HC08SR12 Connection Diagram
MC68HC08SR12
