General Description
MC68HC11D0 Maximum Ratings
| Characteristic | Symbol | Value | Unit |
| Supply voltage | VDD | 0.3 to +6.0 | V |
| Input voltage |
VIN | VSS0.3 to VDD +0.3 |
V |
| Current drain per pin(1) Excluding VDD, VSS, VRH, and VRL |
ID | 25 | mA |
| Storage temperature | TSTG | 55 to +150 | °C |
MC68HC11D0 Features
Features of the MC68HC711D3 include:
• Expanded 16-bit timer system with four-stage programmable prescaler
• Non-return-to-zero (NRZ) serial communications interface (SCI)
• Power-saving stop and wait modes
• 64 Kbytes memory addressability
• Multiplexed address/data bus
• Serial peripheral interface (SPI)
• 4 Kbytes of one-time programmable read-only memory (OTPROM)
• 8-bit pulse accumulator circuit
• 192 bytes of static random-access memory (RAM) (all saved during standby)
• Real-time interrupt (RTI) circuit
• Computer operating properly (COP) watchdog system
• Available in these packages:
40-pin plastic dual in-line package (DIP)
44-pin plastic leaded chip carrier (PLCC)
44-pin plastic quad flat pack (QFP)
• Expanded 16-bit timer system with four-stage programmable prescaler
• Non-return-to-zero (NRZ) serial communications interface (SCI)
• Power-saving stop and wait modes
• 64 Kbytes memory addressability
• Multiplexed address/data bus
• Serial peripheral interface (SPI)
• 4 Kbytes of one-time programmable read-only memory (OTPROM)
• 8-bit pulse accumulator circuit
• 192 bytes of static random-access memory (RAM) (all saved during standby)
• Real-time interrupt (RTI) circuit
• Computer operating properly (COP) watchdog system
• Available in these packages:
40-pin plastic dual in-line package (DIP)
44-pin plastic leaded chip carrier (PLCC)
44-pin plastic quad flat pack (QFP)

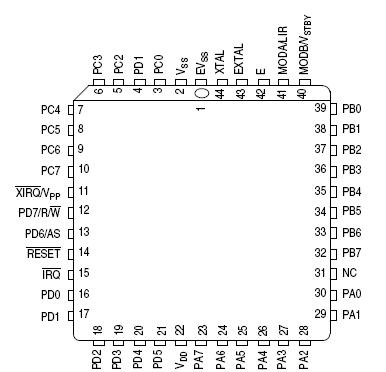

MC68HC11D0 Connection Diagram
MC68HC11D0
PDF/DataSheet Download
