Part Number: MC68HC812A4

MC68HC812A4 Maximum Ratings

Rating	Symbol	Value	Unit
Supply voltage	V_DD V_DDA V_DDX	0.3 to +6.5	V
Input voltage	V_In	0.3 to +6.5	V
Maximum current per pin excluding V_DD and V_SS	I_In	± 25	mA
Storage temperature	T_STG	55 to +150	°C
V_DD differential voltage	V_DDV_DDX	6.5	V

NOTE: This device contains circuitry to protect the inputs against damage due to high static voltages or electric fields; however, it is advised that normal precautions be taken to avoid application of any voltage higher than maximum-rated voltages to this high-impedance circuit. For proper operation, it is recommended that V_In and V_Out be constrained to the range V_SS (V_In or V_Out) V_DD. Reliability of operation is enhanced if unused inputs are connected to an appropriate logic voltage level (for example, either V_SS or V_DD).

MC68HC812A4 Features

• Low-power, high-speed M68HC12 CPU
• Power-saving stop and wait modes
• Memory:
1024-byte RAM
4096-byte EEPROM
On-chip memory mapping allows expansion to more than 5-Mbyte address space
• Single-wire Background Debug® mode
• Non-multiplexed address and data buses
• Seven programmable chip-selects with clock stretching (expanded modes)
• 8-channel, enhanced 16-bit timer with programmable prescaler:
All channels configurable as input capture or output compare
Flexible choice of clock source
• 16-bit pulse accumulator
• Real-time interrupt circuit
• Computer operating properly (COP) watchdog
• Clock monitor
• Phase-locked loop (PLL)
• Two enhanced asynchronous non-return-to-zero (NRZ) serial communication interfaces (SCI)
• Enhanced synchronous serial peripheral interface (SPI)
• 8-channel, 8-bit analog-to-digital converter (ATD)
• Up to 24 key wakeup lines with interrupt capability
• Available in 112-lead low-profile quad flat pack (LQFP) packagin

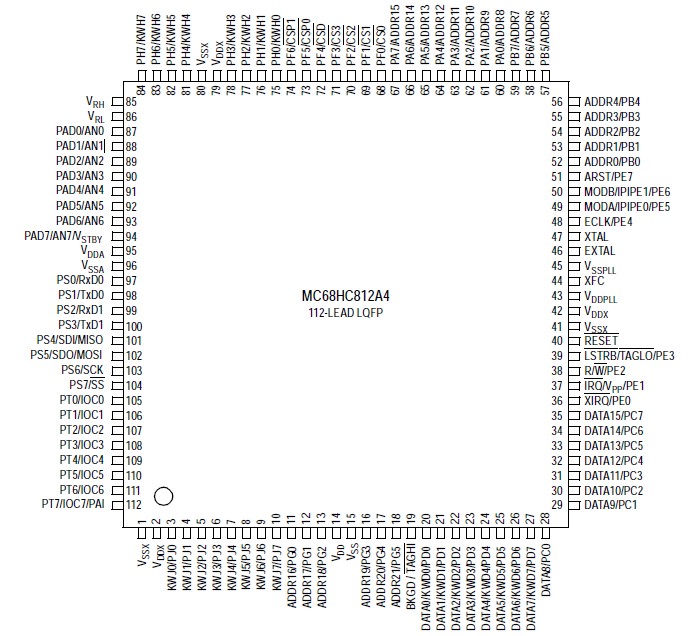

MC68HC812A4 Connection Diagram

MC68HC812A4 datasheet

MC68HC812A4
PDF/DataSheet Download

Datasheet: MC68HC812A4
File Size: 3951932 KB
Manufacturer: Motorola
Click here to Download
