Part Number: MC68HC812A4PV
Description: The MC68HC812A4 microcontroller unit (MCU) is a 16-bit device composed of standard on-chip peripheral modules connected...
- Table of contents:
MC68HC812A4PV
-
Suppliers
DataSheet
General Description
MC68HC812A4PV General Description
The MC68HC812A4 microcontroller unit (MCU) is a 16-bit device composed of standard on-chip peripheral modules connected by an intermodule bus. Modules include:
• 16-bit central processor unit (CPU12)
• Lite integration module (LIM)
• Two asynchronous serial communications interfaces
(SCI0 and SCI1)
• Serial peripheral interface (SPI)
• Timer and pulse accumulator module
• 8-bit analog-to-digital converter (ATD)
• 1-Kbyte random-access memory (RAM)
• 4-Kbyte electrically erasable, programmable read-only memory
(EEPROM)
• Memory expansion logic with chip selects, key wakeup ports, and
a phase-locked loop (PLL)
MC68HC812A4PV Features
• Low-power, high-speed M68HC12 CPU
• Power-saving stop and wait modes
• Memory
1024-byte RAM
4096-byte EEPROM
On-chip memory mapping allows expansion to more than
5-Mbyte address space
• Single-wire Background Debug® mode
• Non-multiplexed address and data buses
• Seven programmable chip-selects with clock stretching
(expanded modes)
• 8-channel, enhanced 16-bit timer with programmable prescaler
All channels configurable as input capture or output compare
Flexible choice of clock source
• 16-bit pulse accumulator
• Real-time interrupt circuit
• Computer operating properly (COP) watchdog
• Clock monitor
• Phase-locked loop (PLL)
• Two enhanced asynchronous non-return-to-zero (NRZ) serial
communication interfaces (SCI)
• Enhanced synchronous serial peripheral interface (SPI)
• 8-channel, 8-bit analog-to-digital converter (ATD)
• Up to 24 key wakeup lines with interrupt capability
• Available in 112-lead low-profile quad flat pack (LQFP) packaging
• Power-saving stop and wait modes
• Memory
1024-byte RAM
4096-byte EEPROM
On-chip memory mapping allows expansion to more than
5-Mbyte address space
• Single-wire Background Debug® mode
• Non-multiplexed address and data buses
• Seven programmable chip-selects with clock stretching
(expanded modes)
• 8-channel, enhanced 16-bit timer with programmable prescaler
All channels configurable as input capture or output compare
Flexible choice of clock source
• 16-bit pulse accumulator
• Real-time interrupt circuit
• Computer operating properly (COP) watchdog
• Clock monitor
• Phase-locked loop (PLL)
• Two enhanced asynchronous non-return-to-zero (NRZ) serial
communication interfaces (SCI)
• Enhanced synchronous serial peripheral interface (SPI)
• 8-channel, 8-bit analog-to-digital converter (ATD)
• Up to 24 key wakeup lines with interrupt capability
• Available in 112-lead low-profile quad flat pack (LQFP) packaging

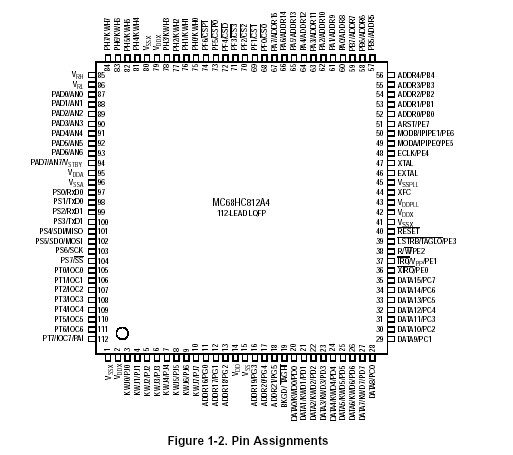

MC68HC812A4PV Connection Diagram
MC68HC812A4PV
PDF/DataSheet Download
- Datasheet: MC68HC812A4PV
- File Size: 3419041 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
