MC68HC908AP32A
-
Suppliers
DataSheet
General Description
MC68HC908AP32A Maximum Ratings
| Characteristic | Symbol | Value | Unit |
| Supply voltage | VDD | 0.3 to +6.0 | V |
| Input voltage All pins (except IRQ1) IRQ1 pin |
VIN | VSS0.3 to VDD +0.3 VSS0.3 to 8.5 |
V V |
| Maximum current per pin excluding VDD and VSS |
I | ± 25 | mA |
| Maximum current out of VSS | IMVSS1 | 100 | mA |
| Maximum current into VDD | Imvdd | 100 | mA |
| Storage temperature | TSTG | 55 to +150 | °C |
MC68HC908AP32A Features
• High-performance M68HC08 architecture
• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families
• Maximum internal bus frequency:
8-MHz at 5V operating voltage
• Clock input options:
RC-oscillator
1- to 8-MHz crystal-oscillator with 32MHz internal PLL
• User program FLASH memory with security(1) feature
62,368 bytes for MC68HC908AP64A
32,768 bytes for MC68HC908AP32A
16,384 bytes for MC68HC908AP16A
8,192 bytes for MC68HC908AP8A
• On-chip RAM
2,048 bytes for MC68HC908AP64A and MC68HC908AP32A
1,024 bytes for MC68HC908AP16A and MC68HC908AP8A
• Two 16-bit, 2-channel timer interface modules (TIM1 and TIM2) with selectable input capture,
output compare, and PWM capability on each channel
• Timebase module
• Serial communications interface module 1 (SCI)
• Serial communications interface module 2 (SCI) with
infrared (IR) encoder/decoder
• Serial peripheral interface module (SPI)
• System management bus (SMBus), version 1.0/1.1
(multi-master IIC bus)
• 8-channel, 10-bit analog-to-digital converter (ADC)
• IRQ1 external interrupt pin with integrated pullup
• IRQ2 external interrupt pin with programmable pullup
• 8-bit keyboard wakeup port with integrated pullup
• 32 general-purpose input/output (I/O) pins:
31 shared-function I/O pins
8 LED drivers (sink)
6 * 25mA open-drain I/O with pullup
• Low-power design (fully static with stop and wait modes)
• Master reset pin (with integrated pullup) and power-on reset
• System protection features
Optional computer operating properly (COP) reset, driven by internal RC oscillator
Low-voltage detection with optional reset or interrupt
Illegal opcode detection with reset
Illegal address detection with reset
• 48-pin low quad flat pack (LQFP), 44-pin quad flat pack (QFP), and 42-pin shrink dual-in-line
package (SDIP)
• Specific features of the MC68HC908AP64A in 42-pin SDIP are:
30 general-purpose l/Os only
External interrupt on IRQ1 only
Features of the CPU08 include the following:
• Enhanced HC05 programming model
• Extensive loop control functions
• 16 addressing modes (eight more than the HC05)
• 16-bit Index register and stack pointer
• Memory-to-memory data transfers
• Fast 8 * 8 multiply instruction
• Fast 16/8 divide instruction
• Binary-coded decimal (BCD) instructions
• Optimization for controller applications
• Efficient C language support
• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families
• Maximum internal bus frequency:
8-MHz at 5V operating voltage
• Clock input options:
RC-oscillator
1- to 8-MHz crystal-oscillator with 32MHz internal PLL
• User program FLASH memory with security(1) feature
62,368 bytes for MC68HC908AP64A
32,768 bytes for MC68HC908AP32A
16,384 bytes for MC68HC908AP16A
8,192 bytes for MC68HC908AP8A
• On-chip RAM
2,048 bytes for MC68HC908AP64A and MC68HC908AP32A
1,024 bytes for MC68HC908AP16A and MC68HC908AP8A
• Two 16-bit, 2-channel timer interface modules (TIM1 and TIM2) with selectable input capture,
output compare, and PWM capability on each channel
• Timebase module
• Serial communications interface module 1 (SCI)
• Serial communications interface module 2 (SCI) with
infrared (IR) encoder/decoder
• Serial peripheral interface module (SPI)
• System management bus (SMBus), version 1.0/1.1
(multi-master IIC bus)
• 8-channel, 10-bit analog-to-digital converter (ADC)
• IRQ1 external interrupt pin with integrated pullup
• IRQ2 external interrupt pin with programmable pullup
• 8-bit keyboard wakeup port with integrated pullup
• 32 general-purpose input/output (I/O) pins:
31 shared-function I/O pins
8 LED drivers (sink)
6 * 25mA open-drain I/O with pullup
• Low-power design (fully static with stop and wait modes)
• Master reset pin (with integrated pullup) and power-on reset
• System protection features
Optional computer operating properly (COP) reset, driven by internal RC oscillator
Low-voltage detection with optional reset or interrupt
Illegal opcode detection with reset
Illegal address detection with reset
• 48-pin low quad flat pack (LQFP), 44-pin quad flat pack (QFP), and 42-pin shrink dual-in-line
package (SDIP)
• Specific features of the MC68HC908AP64A in 42-pin SDIP are:
30 general-purpose l/Os only
External interrupt on IRQ1 only
Features of the CPU08 include the following:
• Enhanced HC05 programming model
• Extensive loop control functions
• 16 addressing modes (eight more than the HC05)
• 16-bit Index register and stack pointer
• Memory-to-memory data transfers
• Fast 8 * 8 multiply instruction
• Fast 16/8 divide instruction
• Binary-coded decimal (BCD) instructions
• Optimization for controller applications
• Efficient C language support

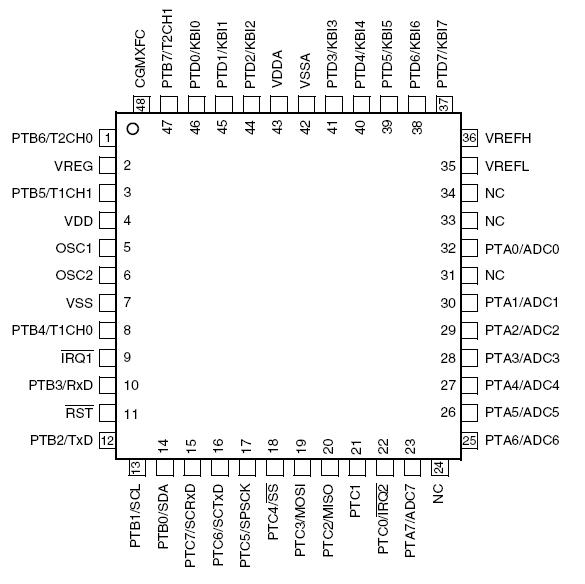

MC68HC908AP32A Connection Diagram
MC68HC908AP32A
PDF/DataSheet Download
- Datasheet: MC68HC908AP32A
- File Size: 100352 KB
- Manufacturer: FREESCALE
- Click here to Download
