General Description
MC68HC908AP8A General Description
The MC68HC908AP64A is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units (MCUs). All MCUs in the family use the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types.
MC68HC908AP8A Maximum Ratings
| Characteristic(1) | Symbol | Value | Unit |
| Supply voltage | VDD | 0.3 to +6.0 | V |
| Input voltage All pins (except IRQ1) IRQ1 pin |
VIN | VSS0.3 to VDD +0.3 VSS0.3 to 8.5 |
V V |
| Maximum current per pin excluding VDD and VSS |
I | ±25 | mA |
| Maximum current out of VSS | IMVSS | 100 | mA |
| Maximum current into VDD | IMVDD | 100 | mA |
| Storage temperature | TSTG | 55 to +150 |
MC68HC908AP8A Features
• High-performance M68HC08 architecture
• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families
• Maximum internal bus frequency:
8-MHz at 5V operating voltage
• Clock input options:
RC-oscillator
1- to 8-MHz crystal-oscillator with 32MHz internal PLL
• User program FLASH memory with security(1) feature
62,368 bytes for MC68HC908AP64A
32,768 bytes for MC68HC908AP32A
16,384 bytes for MC68HC908AP16A
8,192 bytes for MC68HC908AP8A
• On-chip RAM
2,048 bytes for MC68HC908AP64A and MC68HC908AP32A
1,024 bytes for MC68HC908AP16A and MC68HC908AP8A
• Two 16-bit, 2-channel timer interface modules (TIM1 and TIM2) with selectable input capture, output compare, and PWM capability on each channel

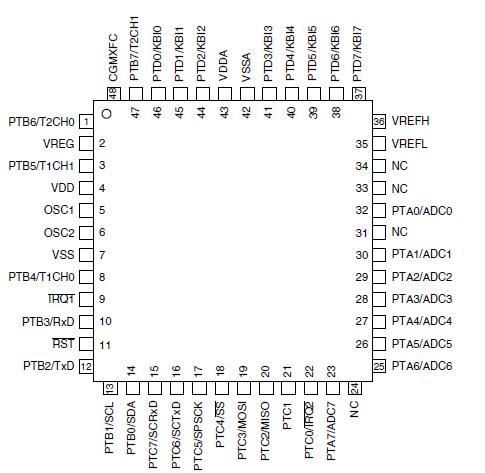

MC68HC908AP8A Connection Diagram
MC68HC908AP8A
PDF/DataSheet Download
- Datasheet: MC68HC908AP8A
- File Size: 1951555 KB
- Manufacturer: FREESCALE
- Click here to Download
