MC68HC908AZ32A
-
Suppliers
DataSheet
General Description
MC68HC908AZ32A Maximum Ratings
| Rating |
Symbol |
Value |
Unit |
|---|---|---|---|
| Supply Voltage |
VDD |
0.3 to +6.0 |
V |
| Input Voltage |
VIN |
VSS 0.3 to VDD +0.3 |
V |
| Maximum Current Per Pin Excluding VDD and VSS |
I |
± 25 |
mA |
| Storage Temperature |
TSTG |
55 to +150 |
°C |
| Maximum Current out of VSS |
IMVSS |
100 |
mA |
| Maximum Current into VDD |
IMVDD |
100 |
mA |
| Reset and IRQ Input Voltage |
VHI |
VDD + 4.5 |
V |
MC68HC908AZ32A Features
• High-Performance M68HC08 Architecture
• Fully Upward-Compatible Object Code with M6805, M146805, and M68HC05 Families
• 8.4 MHz Internal Bus Frequency
• 32,256 bytes of FLASH Electrically Erasable Read-Only Memory (FLASH)
• FLASH Data Security
• 512 bytes of On-Chip Electrically Erasable Programmable Read-Only Memory with Security Option (EEPROM)
• 1K byte of On-Chip RAM
• Clock Generator Module (CGM)
• Serial Peripheral Interface Module (SPI)
• Serial Communications Interface Module (SCI)
• 8-Bit, 15-Channel Analog-to-Digital Converter (ADC-15)
• 16-Bit, 6-Channel Timer Interface Module (TIMA-6)
• 16-Bit, 2-Channel Timer Interface Module (TIMB)
• Programmable Interrupt Timer (PIT)
• System Protection Features
Computer Operating Properly (COP) with Optional Reset
Low-Voltage Detection with Optional Reset
Illegal Opcode Detection with Optional Reset
Illegal Address Detection with Optional Reset
• Low-Power Design (Fully Static with Stop and Wait Modes)
• Master Reset Pin and Power-On Reset
• 5-Bit Keyboard Interrupt Module
• MSCAN Controller (Motorola Scalable CAN) implements CAN 2.0b Protocol as Defined in BOSCH Specification September 1991Features of the CPU08 include:
• Enhanced HC05 Programming Model
• Extensive Loop Control Functions
• 16 Addressing Modes (Eight More Than the HC05)
• 16-Bit Index Register and Stack Pointer
• Memory-to-Memory Data Transfers
• Fast 8 * 8 Multiply Instruction
• Fast 16/8 Divide Instruction
• Binary-Coded Decimal (BCD) Instructions
• Optimization for Controller Applications
• C Language Support
• Fully Upward-Compatible Object Code with M6805, M146805, and M68HC05 Families
• 8.4 MHz Internal Bus Frequency
• 32,256 bytes of FLASH Electrically Erasable Read-Only Memory (FLASH)
• FLASH Data Security
• 512 bytes of On-Chip Electrically Erasable Programmable Read-Only Memory with Security Option (EEPROM)
• 1K byte of On-Chip RAM
• Clock Generator Module (CGM)
• Serial Peripheral Interface Module (SPI)
• Serial Communications Interface Module (SCI)
• 8-Bit, 15-Channel Analog-to-Digital Converter (ADC-15)
• 16-Bit, 6-Channel Timer Interface Module (TIMA-6)
• 16-Bit, 2-Channel Timer Interface Module (TIMB)
• Programmable Interrupt Timer (PIT)
• System Protection Features
Computer Operating Properly (COP) with Optional Reset
Low-Voltage Detection with Optional Reset
Illegal Opcode Detection with Optional Reset
Illegal Address Detection with Optional Reset
• Low-Power Design (Fully Static with Stop and Wait Modes)
• Master Reset Pin and Power-On Reset
• 5-Bit Keyboard Interrupt Module
• MSCAN Controller (Motorola Scalable CAN) implements CAN 2.0b Protocol as Defined in BOSCH Specification September 1991Features of the CPU08 include:
• Enhanced HC05 Programming Model
• Extensive Loop Control Functions
• 16 Addressing Modes (Eight More Than the HC05)
• 16-Bit Index Register and Stack Pointer
• Memory-to-Memory Data Transfers
• Fast 8 * 8 Multiply Instruction
• Fast 16/8 Divide Instruction
• Binary-Coded Decimal (BCD) Instructions
• Optimization for Controller Applications
• C Language Support

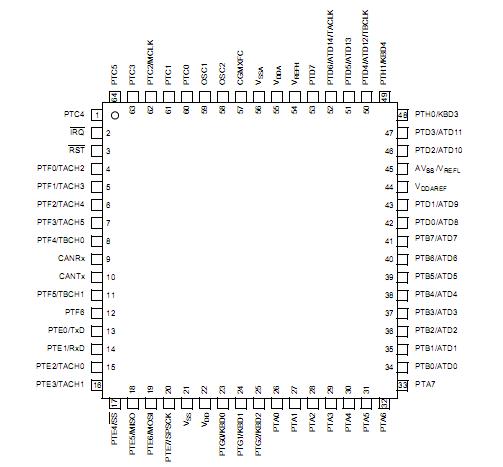

MC68HC908AZ32A Connection Diagram
MC68HC908AZ32A
PDF/DataSheet Download
- Datasheet: MC68HC908AZ32A
- File Size: 3729408 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
- ·MC6173
- MOTOROLA [Motorola, Inc]
- 2400 bps DIGITAL DEMODULATOR
- 870882 KB
- ·MC6173L
- MOTOROLA [Motorola, Inc]
- 2400 bps DIGITAL DEMODULATOR
- 870882 KB
- ·MC6173P
- MOTOROLA [Motorola, Inc]
- 2400 bps DIGITAL DEMODULATOR
- 870882 KB
- ·MC623
- ONSEMI [ON Semiconductor]
- 3V, Dual Trip Point Temperature Sensor
- 73582 KB
- ·MC623DR2
- ONSEMI [ON Semiconductor]
- 3V, Dual Trip Point Temperature Sensor
- 77050 KB
- ·MC624
- PWM FAN SPEED CONTROLLER WITH FAULT DETECTION
- 226511 KB
- ·MC642
- ON SEMICONDUCTOR
- 3.0 V, Dual Trip Point Temperature Sensor
- 124927 KB
- ·MC642.REV3
- ONSEMI [ON Semiconductor]
- 3.0 V, Dual Trip Point Temperature Sensor
- 67492 KB
