General Description
MC68HC908AZ60A Features
Features of the MC68HC908AS60A and MC68HC908AZ60A include:
High-Performance M68HC08 Architecture
Fully Upward-Compatible Object Code with M6805, M146805, and M68HC05 Families
8.4 MHz Internal Bus Frequency
60 Kbytes of FLASH Electrically Erasable Read-Only Memory (FLASH)
FLASH Data Security
1 Kbyte of On-Chip Electrically Erasable Programmable Read-Only Memory with Security Option (EEPROM)
2 Kbyte of On-Chip RAM
Clock Generator Module (CGM)
Serial Peripheral Interface Module (SPI)
Serial Communications Interface Module (SCI)
8-Bit, 15-Channel Analog-to-Digital Converter (ADC-15)
16-Bit, 6-Channel Timer Interface Module (TIMA-6)
Programmable Interrupt Timer (PIT)
System Protection Features
-CComputer Operating Properly (COP) with Optional Rese
-CLow-Voltage Detection with Optional Rese
-CIllegal Opcode Detection with Optional Rese
-CIllegal Address Detection with Optional Rese
Low-Power Design (Fully Static with Stop and Wait Modes)
Master Reset Pin and Power-On Reset
16-Bit, 2-Channel Timer Interface Module (TIMB) (AZ only)
5-Bit Keyboard Interrupt Module (64-Pin QFP only)
MSCAN Controller (Motorola Scalable CAN) implements CAN 2.0b Protocol as Defined in BOSCH Specification September 1991 (AZ only)
SAE J1850 Byte Data Link Controller Digital Module (AS only) Features of the CPU08 include:
Enhanced HC05 Programming Model
Extensive Loop Control Functions
16 Addressing Modes (Eight More Than the HC05)
16-Bit Index Register and Stack Pointer
Memory-to-Memory Data Transfers
Fast 8 8 Multiply Instruction
Fast 16/8 Divide Instruction
Binary-Coded Decimal (BCD) Instructions
Optimization for Controller Applications
C Language Support
High-Performance M68HC08 Architecture
Fully Upward-Compatible Object Code with M6805, M146805, and M68HC05 Families
8.4 MHz Internal Bus Frequency
60 Kbytes of FLASH Electrically Erasable Read-Only Memory (FLASH)
FLASH Data Security
1 Kbyte of On-Chip Electrically Erasable Programmable Read-Only Memory with Security Option (EEPROM)
2 Kbyte of On-Chip RAM
Clock Generator Module (CGM)
Serial Peripheral Interface Module (SPI)
Serial Communications Interface Module (SCI)
8-Bit, 15-Channel Analog-to-Digital Converter (ADC-15)
16-Bit, 6-Channel Timer Interface Module (TIMA-6)
Programmable Interrupt Timer (PIT)
System Protection Features
-CComputer Operating Properly (COP) with Optional Rese
-CLow-Voltage Detection with Optional Rese
-CIllegal Opcode Detection with Optional Rese
-CIllegal Address Detection with Optional Rese
Low-Power Design (Fully Static with Stop and Wait Modes)
Master Reset Pin and Power-On Reset
16-Bit, 2-Channel Timer Interface Module (TIMB) (AZ only)
5-Bit Keyboard Interrupt Module (64-Pin QFP only)
MSCAN Controller (Motorola Scalable CAN) implements CAN 2.0b Protocol as Defined in BOSCH Specification September 1991 (AZ only)
SAE J1850 Byte Data Link Controller Digital Module (AS only) Features of the CPU08 include:
Enhanced HC05 Programming Model
Extensive Loop Control Functions
16 Addressing Modes (Eight More Than the HC05)
16-Bit Index Register and Stack Pointer
Memory-to-Memory Data Transfers
Fast 8 8 Multiply Instruction
Fast 16/8 Divide Instruction
Binary-Coded Decimal (BCD) Instructions
Optimization for Controller Applications
C Language Support

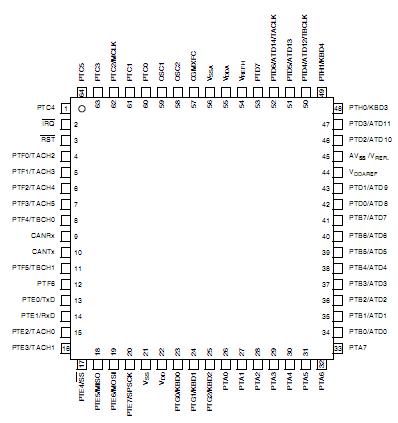

MC68HC908AZ60A Connection Diagram
