MC68HC912BL16 Features
• 16-Bit CPU12
- Upward Compatible with M68HC11 Instruction Set
- Interrupt Stacking and Programmer's Model Identical to M68HC11
- 20-Bit ALU
- Instruction Queue
- Enhanced Indexed Addressing
- Fuzzy Logic Instructions
• Multiplexed Bus
- Single Chip or Expanded
- 16/16 Wide or 16/8 Narrow Modes
• Memory
- 16-Kbyte Flash EEPROM with 2-Kbyte Erase-Protected Boot Block
- 512-byte EEPROM
- 512-byte RAM with Single-Cycle Access for Aligned or Misaligned Read/Write
• 8-Channel, 10-bit Analog-to-Digital Converter
• 7-Channel Timer
- Each Channel Fully Configurable as Either Input Capture or Output Compare
- Simple PWM Mode
- Modulo Reset of Timer Counter
• 16-Bit Pulse Accumulator
- External Event Counting
- Gated Time Accumulation
• Pulse-Width Modulator
- 8-Bit, 4-Channel or 16-Bit, 2-Channel
- Separate Control for Each Pulse Width and Duty Cycle
- Programmable Center-Aligned or Left-Aligned Outputs
• Serial Interfaces

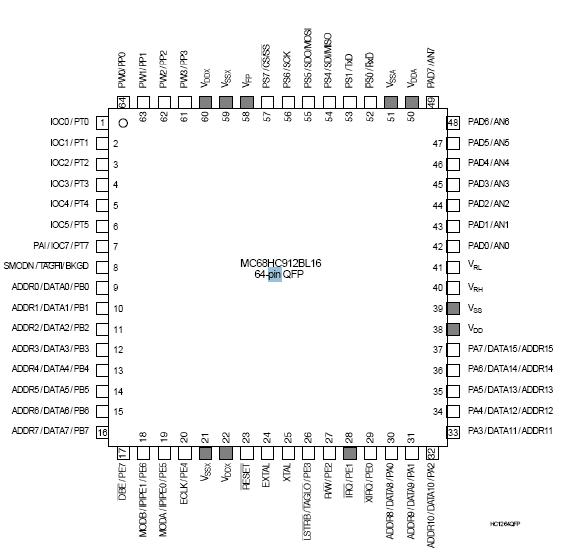

MC68HC912BL16 Connection Diagram
