General Description
MC68HLC908QY4 General Description
The MC68HLC908QY4 is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units (MCUs). The M68HC08 Family is a Complex Instruction Set Computer (CISC) with a Von Neumann architecture. All MCUs in the family use the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types.
MC68HLC908QY4 Maximum Ratings
| Characteristic(1) | Symbol | Value | Value |
| Supply voltage | VDD | 0.3 to +6.0 | V |
| Input voltage | VIn | VSS0.3 to VDD +0.3 VSS0.3 to 8.5 |
V |
| Mode entry voltage, IRQ pin | VTST | VSS 0.3 to +9.1 | V |
| Maximum current per pin excluding PTA0PTA5, VDD, and VSS |
I | ±15 | mA |
| Maximum current for pins PTA0PTA5 | IPTA0-IPTA5 | ±25 | mA |
| Storage temperature | TSTG | 55 to +150 | °C |
| Maximum current out of VSS | IMVSS | 100 | mA |
| Maximum current into VDD | IMVDD | 100 | mA |
MC68HLC908QY4 Features
• High-performance M68HC08 CPU core
• Fully upward-compatible object code with M68HC05 Family
• Operating voltage range of 2.2 V to 3.6 V
• 2-MHz internal bus operation
• Trimmable internal oscillator
1.0 MHz internal bus operation
8-bit trim capability allows 0.4% accuracy(1)
± 25% untrimmed
• Auto wakeup from STOP capability
• Configuration (CONFIG) register for MCU configuration options, including:
Low-voltage inhibit (LVI) trip point
• In-system FLASH programming
• FLASH security(1)
• On-chip in-application programmable FLASH memory (with internal program/erase voltage generation)
MC68HLC908QY4 and MC68HLC908QT4 - 4096 bytes
MC68HLC908QY2, MC68HLC908QY1, MC68HLC908QT2, and MC68HLC908QT1- 1536 bytes
• 128 bytes of on-chip random-access memory (RAM)
• 2-channel, 16-bit timer interface module (TIM)
• 4-channel, 8-bit analog-to-digital converter (ADC) on MC68HLC908QY2, MC68HLC908QY4, MC68HLC908QT2, and MC68HLC908QT4
• 5 or 13 bidirectional input/output (I/O) lines and one input only:
Six shared with keyboard interrupt function and ADC
Two shared with timer channels
One shared with external interrupt (IRQ)
Eight extra I/O lines on 16-pin package only
High current sink/source capability on all port pins
Selectable pullups on all ports, selectable on an individual bit basis
Three-state ability on all port pins
• 6-bit keyboard interrupt with wakeup feature (KBI)
• Low-voltage inhibit (LVI) module features:
Software selectable trip point in CONFIG register
• System protection features:
Computer operating properly (COP) watchdog
Low-voltage detection with optional reset
Illegal opcode detection with reset
Illegal address detection with reset
• External asynchronous interrupt pin with internal pullup (IRQ) shared with general-purpose input pin
• Master asynchronous reset pin (RST) shared with general-purpose input/output (I/O) pin
• Power-on reset
• Internal pullups on IRQ and RST to reduce external components
• Memory mapped I/O registers
• Power saving stop and wait modes
• MC68HLC908QY4, MC68HLC908QY2, and MC68HLC908QY1 are available in these packages:
16-pin plastic dual in-line package (PDIP)
16-pin small outline integrated circuit (SOIC) package
16-pin thin shrink small outline package (TSSOP)
• MC68HLC908QT4, MC68HLC908QT2, and MC68HLC908QT1 are available in these packages:
8-pin PDIP
8-pin SOIC
8-pin dual flat no lead (DFN) package
• Features of the CPU08 include the following:
• Enhanced HC05 programming model
• Extensive loop control functions
• 16 addressing modes (eight more than the HC05)
• 16-bit index register and stack pointer
• Memory-to-memory data transfers
• Fast 8 * 8 multiply instruction
• Fast 16/8 divide instruction
• Binary-coded decimal (BCD) instructions
• Optimization for controller applications
• Efficient C language support
• Fully upward-compatible object code with M68HC05 Family
• Operating voltage range of 2.2 V to 3.6 V
• 2-MHz internal bus operation
• Trimmable internal oscillator
1.0 MHz internal bus operation
8-bit trim capability allows 0.4% accuracy(1)
± 25% untrimmed
• Auto wakeup from STOP capability
• Configuration (CONFIG) register for MCU configuration options, including:
Low-voltage inhibit (LVI) trip point
• In-system FLASH programming
• FLASH security(1)
• On-chip in-application programmable FLASH memory (with internal program/erase voltage generation)
MC68HLC908QY4 and MC68HLC908QT4 - 4096 bytes
MC68HLC908QY2, MC68HLC908QY1, MC68HLC908QT2, and MC68HLC908QT1- 1536 bytes
• 128 bytes of on-chip random-access memory (RAM)
• 2-channel, 16-bit timer interface module (TIM)
• 4-channel, 8-bit analog-to-digital converter (ADC) on MC68HLC908QY2, MC68HLC908QY4, MC68HLC908QT2, and MC68HLC908QT4
• 5 or 13 bidirectional input/output (I/O) lines and one input only:
Six shared with keyboard interrupt function and ADC
Two shared with timer channels
One shared with external interrupt (IRQ)
Eight extra I/O lines on 16-pin package only
High current sink/source capability on all port pins
Selectable pullups on all ports, selectable on an individual bit basis
Three-state ability on all port pins
• 6-bit keyboard interrupt with wakeup feature (KBI)
• Low-voltage inhibit (LVI) module features:
Software selectable trip point in CONFIG register
• System protection features:
Computer operating properly (COP) watchdog
Low-voltage detection with optional reset
Illegal opcode detection with reset
Illegal address detection with reset
• External asynchronous interrupt pin with internal pullup (IRQ) shared with general-purpose input pin
• Master asynchronous reset pin (RST) shared with general-purpose input/output (I/O) pin
• Power-on reset
• Internal pullups on IRQ and RST to reduce external components
• Memory mapped I/O registers
• Power saving stop and wait modes
• MC68HLC908QY4, MC68HLC908QY2, and MC68HLC908QY1 are available in these packages:
16-pin plastic dual in-line package (PDIP)
16-pin small outline integrated circuit (SOIC) package
16-pin thin shrink small outline package (TSSOP)
• MC68HLC908QT4, MC68HLC908QT2, and MC68HLC908QT1 are available in these packages:
8-pin PDIP
8-pin SOIC
8-pin dual flat no lead (DFN) package
• Features of the CPU08 include the following:
• Enhanced HC05 programming model
• Extensive loop control functions
• 16 addressing modes (eight more than the HC05)
• 16-bit index register and stack pointer
• Memory-to-memory data transfers
• Fast 8 * 8 multiply instruction
• Fast 16/8 divide instruction
• Binary-coded decimal (BCD) instructions
• Optimization for controller applications
• Efficient C language support

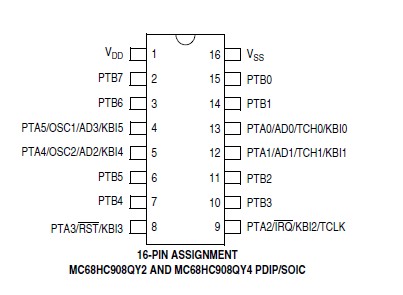

MC68HLC908QY4 Connection Diagram
MC68HLC908QY4
PDF/DataSheet Download
- Datasheet: MC68HLC908QY4
- File Size: 2831909 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
