MC68SEC000
-
Suppliers
DataSheet
General Description
MC68SEC000 General Description
This addendum to the M68000UM/AD User's Manual , Revision 8, provides corrections to the original text as well as additional information. This document and other information on this product is maintained on the World Wide Web at http://www.motorola.com/68000.
MC68SEC000 Maximum Ratings
| RATING | SYMBOL | VALUE | UNIT |
| Supply Voltage | VCC | 0.3 to 6.5 | V |
| Input Voltage | Vin | 0.5 to 6.5 | V |
| Maximum Operating Temperature Range Commercial Extended "C" Grade |
TA | TLto TH 0 to 70 40 to 85 |
ºC |
| Storage Temperature | TSTG | 55 to 150 | ºC |
MC68SEC000 Features
The four microprocessors are very similar to each other and all contain the following features:
• Sixteen 32-Bit Data and Address Registers
• 16-Mbyte Direct Addressing Range
• Program Counter
• 6 Instruction Types
• Operations on Five Main Data Types
• Memory-Mapped Input/Output (I/O)
• 14 Addressing Modes
The following processors contain additional features:
• MC68HC001/MC68EC000/MC68SEC000
- Statically selectable 8- or 16-bit data bus
• MC68HC000/MC68EC000/MC68HC001/MC68SEC000
- Low power
The primary features of the MC68SEC000 embedded processor include the following:
• Direct Replacement for the MC68EC000
- Pin-for-pin compatibility with the MC68EC000 in the plastic QFP and TQFP packages
- Vast selection of existing third-party development tools for the MC68EC000 support the
MC68SEC000
- Software written for the MC68EC000 will run unchanged on the MC68SEC000
• Power Management
- Low-power HCMOS technology
- Static design allows for stopping the processor clock
- 3.3V or 5V operation
- Typical 0.5mA current consumption at 3.3V in sleep mode
• Software Strength
- Fully upward object-code compatible with other M68000 Family products
- M68000 architecture allows effective assembly code with a C compiler
• Upgrade
- Fully upward code-compatible with higher performance 680x0 and 68300 Family members
- ColdFire®code-compatible with minor modifications
• Sixteen 32-Bit Data and Address Registers
• 16-Mbyte Direct Addressing Range
• Program Counter
• 6 Instruction Types
• Operations on Five Main Data Types
• Memory-Mapped Input/Output (I/O)
• 14 Addressing Modes
The following processors contain additional features:
• MC68HC001/MC68EC000/MC68SEC000
- Statically selectable 8- or 16-bit data bus
• MC68HC000/MC68EC000/MC68HC001/MC68SEC000
- Low power
The primary features of the MC68SEC000 embedded processor include the following:
• Direct Replacement for the MC68EC000
- Pin-for-pin compatibility with the MC68EC000 in the plastic QFP and TQFP packages
- Vast selection of existing third-party development tools for the MC68EC000 support the
MC68SEC000
- Software written for the MC68EC000 will run unchanged on the MC68SEC000
• Power Management
- Low-power HCMOS technology
- Static design allows for stopping the processor clock
- 3.3V or 5V operation
- Typical 0.5mA current consumption at 3.3V in sleep mode
• Software Strength
- Fully upward object-code compatible with other M68000 Family products
- M68000 architecture allows effective assembly code with a C compiler
• Upgrade
- Fully upward code-compatible with higher performance 680x0 and 68300 Family members
- ColdFire®code-compatible with minor modifications

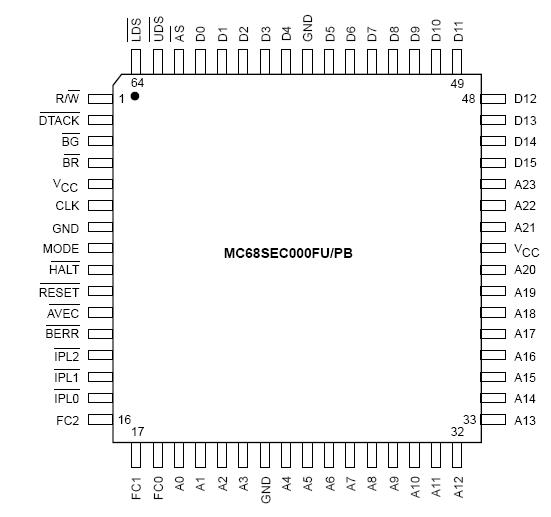

MC68SEC000 Connection Diagram
MC68SEC000
PDF/DataSheet Download
- Datasheet: MC68SEC000
- File Size: 255214 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
- ·MC6173
- MOTOROLA [Motorola, Inc]
- 2400 bps DIGITAL DEMODULATOR
- 870882 KB
- ·MC6173L
- MOTOROLA [Motorola, Inc]
- 2400 bps DIGITAL DEMODULATOR
- 870882 KB
- ·MC6173P
- MOTOROLA [Motorola, Inc]
- 2400 bps DIGITAL DEMODULATOR
- 870882 KB
- ·MC623
- ONSEMI [ON Semiconductor]
- 3V, Dual Trip Point Temperature Sensor
- 73582 KB
- ·MC623DR2
- ONSEMI [ON Semiconductor]
- 3V, Dual Trip Point Temperature Sensor
- 77050 KB
- ·MC624
- PWM FAN SPEED CONTROLLER WITH FAULT DETECTION
- 226511 KB
- ·MC642
- ON SEMICONDUCTOR
- 3.0 V, Dual Trip Point Temperature Sensor
- 124927 KB
- ·MC642.REV3
- ONSEMI [ON Semiconductor]
- 3.0 V, Dual Trip Point Temperature Sensor
- 67492 KB
MC68SEC000 Relative Products
MC68SC302
The MC68SC302 Application Development System (ADS) is a platform for developing a passive terminal adaptor using the MC68SC302. In addition to being an ISA half-card form factor plug-in card, the MC68SC302 can also be plugged into a PC card slot for developm...

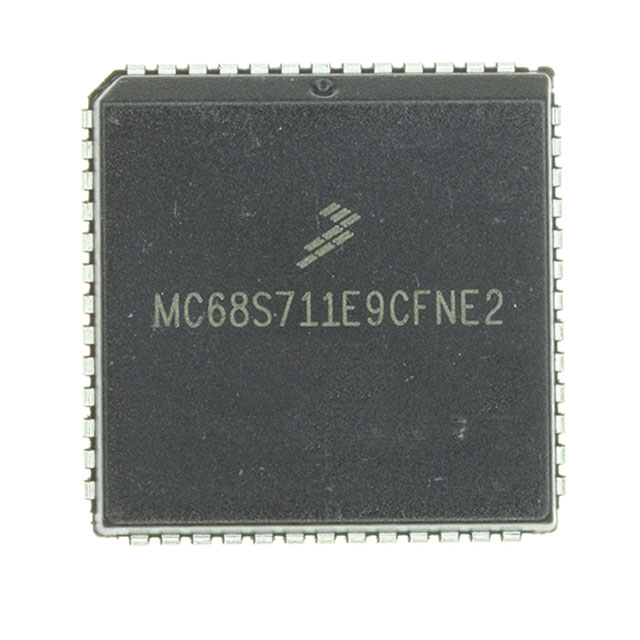

MC68S711E9CFNE2
