MFG:MOT  Package Cooled:SOP/14

MC74AC00 Product Image

MC7 Series Datasheet download

Five Points

Part Number: MC74AC00



MFG: MOT

Package Cooled: SOP/14





Urgent Purchase

MC74AC00 Maximum Ratings

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND)
0.5 to +7.0
V
Vin
 DC Input Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Vout
 DC Output Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Iin
 DC Input Current, per Pin
±20
mA
Iout
 DC Output Sink/Source Current, per Pin
±50
mA
ICC
 DC VCC or GND Current per Output Pin
±50
mA
Tstg
 Storage Temperature
65 to +150
* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
   should be restricted to the Recommended Operating Conditions.

MC74AC00 Features

• Outputs Source/Sink 24 mA
• 'ACT00 Has TTL Compatible Inputs

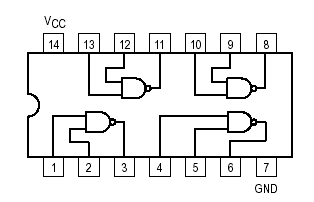

MC74AC00 Connection Diagram

MC74AC00 Connection Diagram
