MC74AC374 General Description


The MC74AC374/74ACT374 is a high-speed, low-power octal D-type flip-flop featuring separate D-type inputs for each flip-flop and 3-state outputs for busoriented applications. A buffered Clock (CP) and Output Enable (OE) are common to all flip-flops.

MC74AC374 Maximum Ratings

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND)
0.5 to +7.0
V
Vin
 DC Input Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Vout
 DC Output Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Iin
 DC Input Current, per Pin
±20
mA
Iout
 DC Output Sink/Source Current, per Pin
±50
mA
ICC
 DC VCC or GND Current per Output Pin
±50
mA
Tstg
 Storage Temperature
65 to +150
* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
   should be restricted to the Recommended Operating Conditions.

MC74AC374 Features

• Buffered Positive Edge-Triggered Clock
• 3-State Outputs for Bus-Oriented Applications
• Outputs Source/Sink 24 mA
• See MC74AC273 for Reset Version
• See MC74AC377 for Clock Enable Version
• See MC74AC373 for Transparent Latch Version
• See MC74AC574 for Broadside Pinout Version
• See MC74AC564 for Broadside Pinout Version with Inverted Outputs
• 'ACT374 Has TTL Compatible Inputs

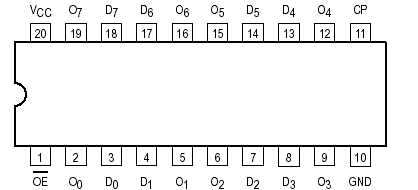

MC74AC374 Connection Diagram
