Part Number: MC74F258A









Description: The MC74F258A is a quad 2-input multiplexer with 3-state outputs. Four bits of data from two sources c...


Urgent Purchase

MC74F258A General Description


The MC74F258A is a quad 2-input multiplexer with 3-state outputs. Four bits of data from two sources can be selected using a common Data Select input. The four outputs present the selected data in the complement (inverted) form. The outputs may be switched to a high impedance state with a HIGH on the common Output Enable (OE ) input, allowing the outputs to interface directly with bus-oriented systems.

MC74F258A Features

• Multiplexer Expansion by Tying Outputs Together
• Inverting 3-State Outputs
• AC Enhanced Version of the F258

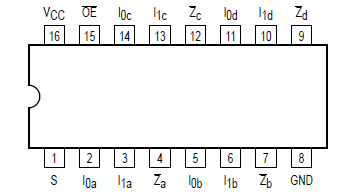

MC74F258A Connection Diagram

MC74F258A Connection Diagram

MC74F258A datasheet

MC74F258A
PDF/DataSheet Download
