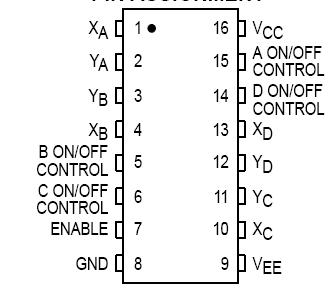

MFG:ONS Package Cooled:SOP16
MFG: ONS
Package Cooled: SOP16
Description: The MC74HC4316 utilizes silicongate CMOS technology to achieve fast propagation delays, low ON resista...
The MC74HC4316 utilizes silicongate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFFchannel leakage current. This bilateral switch/multiplexer/demultiplexer controls analog and digital voltages that may vary across the full analog powersupply range (from VCC to VEE).
The HC4316 is similar in function to the metalgate CMOS MC14016 and MC14066, and to the HighSpeed CMOS HC4016 and HC4066. Each device has four independent switches. The device control and Enable inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. The device has been designed so that the ON resistances (RON) are much more linear over input voltage than RON of metalgate CMOS analog switches. Logiclevel translators are provided so that the On/Off Control and Enable logiclevel voltages need only be VCC and GND, while the switch is passing signals ranging between VCC and VEE. When the Enable pin (activelow) is high, all four analog switches are turned off.
| Symbol | Parameter | Value | Unit |
| vcc | DC Supply Voltage (Referenced to GND) | 0.5 to +7.0 | V |
| VIN | DC Input Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| VOUT | DC Output Voltage (Referenced to GND) | 0.5 to VCC + 0.5 | V |
| LIN | DC Input Current, per Pin | ±20 | mA |
| IOUT | DC Onput Current, per Pin | ±35 | mA |
| ICC | DC Supply Current Per Supply Pin | ±75 | mA |
| PD | Power dissipation in still air piastic DIP SOIC package |
750 500 |
mW |
| TSTG | Storage Temperature | 65 to +150 | °C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package) |
260 |
°C |
MC74HC4316
PDF/DataSheet Download
The MC74HC42 is identical in pinout to the LS42. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.The HC42 decodes a BCD Address to oneoften active low outputs. For Address inputs with...
The MC74HC4078 is similar to the CD4078B metalgate CMOS device. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
The MC74HC4075 is identical in pinout to the MC14075B. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
IC MUX/DEMUX QUAD 1X1 14DIP

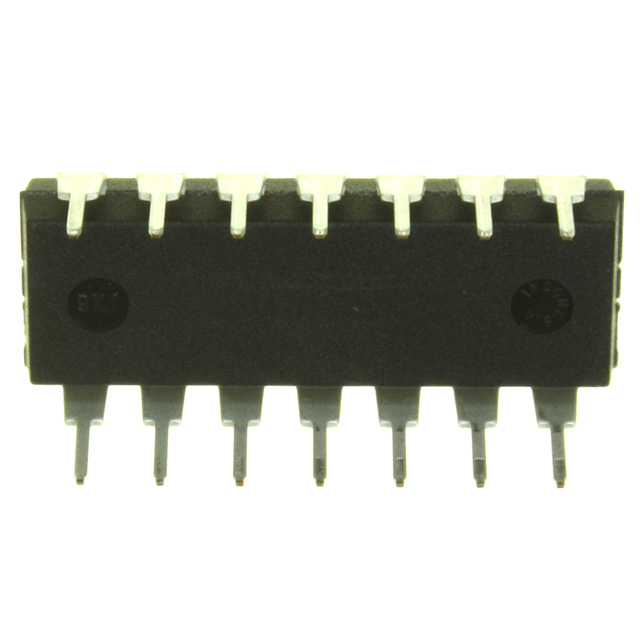

The MC74HC4066A utilizes silicongate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFFchannel leakage current. This bilateral switch/ multiplexer/demultiplexer controls analog and digital voltages that may vary across the fu...
