MFG:MOTOROLA D/C:00+
MFG: MOTOROLA
D/C: 00+
Description: The MC54/74HC589A is similar in function to the HC597, which is not a 3state device. The device inputs are compatibl...
The MC54/74HC589A is similar in function to the HC597, which is not a 3state device. The device inputs are compatible with standard CMOS outputs, with pullup resistors, they are compatible with LSTTL outputs.
This device consists of an 8bit storage latch which feeds parallel data to an 8bit shift register. Data can also be loaded serially (see Function Table). The shift register output, QH, is a threestate output, allowing this device to be used in busoriented systems.
The HC589A directly interfaces with the Motorola SPI serial data port on CMOS MPUs and MCUs.
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
DC Supply Voltage (Referenced to GND) |
0.5 to + 7.0 |
V |
|
Vin |
DC Input Voltage (Referenced to GND) |
0.5 to VCC + 0.5 |
V |
|
Vout |
DC Output Voltage (Referenced to GND) |
0.5 to VCC + 0.5 |
V |
|
Iin |
DC Input Current, per Pin |
± 20 |
mA |
|
Iout |
DC Output Current, per Pin |
± 35 |
mA |
|
ICC |
DC Supply Current, VCC and GND Pins |
± 75 |
mA |
|
PD |
Power Dissipation in Still Air,Plastic DIP† |
750 500 450 |
mW |
|
Tstg |
Storage Temperature |
65 to + 150 |
C |
|
TL |
Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP, SOIC or TSSOP Package) |
260 |
C |
• Output Drive Capability: 15 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2 to 6 V
• Low Input Current: 1 µA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 526 FETs or 131.5 Equivalent Gates
MC74HC589A
PDF/DataSheet Download
The MC74HC58 is identical to the MC74HC51 except that the outputs are inverted. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.

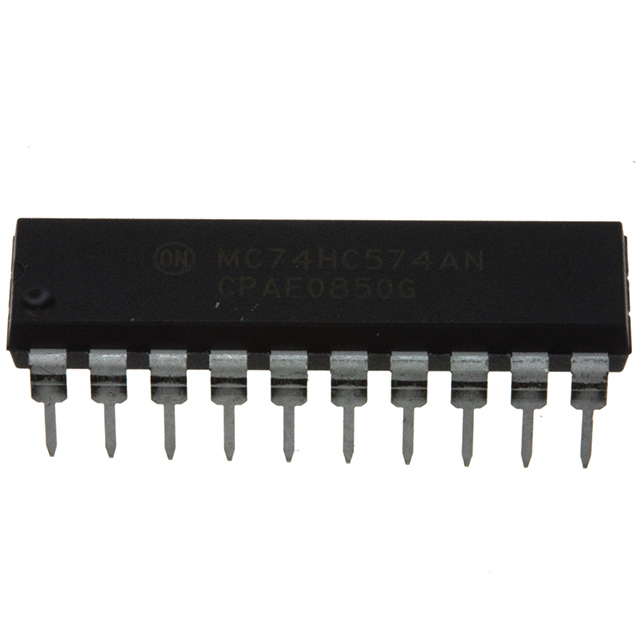

IC FLIP FLOP NONINV OCTAL 20DIP
