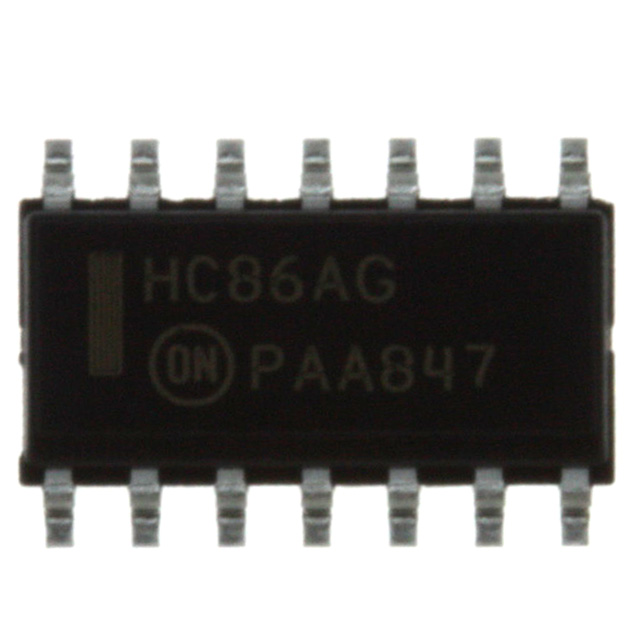

MFG:ON Package Cooled:SOP-14 D/C:03+
MFG: ON
Package Cooled: SOP-14
D/C: 03+
Description: The MC74HC86A is identical in pinout to the LS86. The device inputs are compatible with standard CMOS ...
The MC74HC86A is identical in pinout to the LS86. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
| Symbol | Parameter | Value | Unit |
| VCC | DC Supply Voltage (Referenced to GND) | 0.5 to + 7.0 | V |
| VIN | DC Input Voltage (Referenced to GND) | 0.5 to VCC+ 0.5 | V |
| VOUT | DC Output Voltage (Referenced to GND) | 0.5 to VCC+ 0.5 | V |
| IIN | DC Input Current, per Pin | ±20 | mA |
| IOUT | DC Output Current, per Pin | ±25 | mA |
| ICC | DC Supply Current, Vcc and GND Pins | ±50 | mA |
| PD | Power Dissipation in Still Air, PlasticDIP† SOIC Package† TSSOP Package† |
750 500 450 |
mW |
| TSTG | Storage Temperature | 65 to + 150 | |
| TL | Lead Temperature, 1 mm from Case for 10Seconds (Plastic DIP, SOIC or TSSOP Package) |
260 |
MC74HC86ADR2
PDF/DataSheet Download
IC GATE OR QUAD 2IN EXCL 14-SOIC
IC GATE OR QUAD 2IN EXC 14-SOIC
The MC74HC86A is identical in pinout to the LS86. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
