Part Number: MC74HCT04A



MFG: ON



D/C: O9+

Description: The MC74HCT04A may be used as a level converter for interfacing TTL or NMOS outputs to HighSpeed CMOS inputs.Th...


Urgent Purchase

MC74HCT04A General Description


The MC74HCT04A may be used as a level converter for interfacing TTL or NMOS outputs to HighSpeed CMOS inputs.

The HCT04A is identical in pinout to the LS04.

MC74HCT04A Maximum Ratings

Symbol Parameter Value Unit
vcc DC Supply Voltage (Referenced to GND) 0.5 to +7.0 V
VIN DC Input Voltage (Referenced to GND) 0.5 to VCC + 0.5 V
VOUT DC Output Voltage (Referenced to GND) 0.5 to VCC + 0.5 V
LIN DC Input Current, per Pin ±20 mA
IOUT DC Onput Current, per Pin ±25 mA
ICC DC Supply Current Per Supply Pin ±50 mA
PD Power dissipation in still air piastic DIP
SOIC package
750
500
450		 mW
TSTG Storage Temperature 65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)		 260 °C
* Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - Plastic DIP: 10 mW/C from 65 to 125C
Ceramic DIP: 10 mW/C from 100 to 125C
SOIC Package: 7 mW/C from 65 to 125C
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).

MC74HCT04A Features

• Output Drive Capability: 10 LSTTL Loads
• TTL/NMOSCompatible Input Levels
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 4.5 to 5.5V
• Low Input Current: 1mA
• In Compliance With the JEDEC Standard No. 7A Requirements
• Chip Complexity: 48 FETs or 12 Equivalent Gates

MC74HCT04A Connection Diagram

MC74HCT04A Connection Diagram

MC74HCT04A datasheet

MC74HCT04A
PDF/DataSheet Download

Find MC74HCT04A Suppliers

  • ·MC705C8ACFNR2
  • MOTOROLA [Motorola, Inc]
  • M68HC05 MICROCONTROLLERS
  • 2307881 KB
  • MC705C8ACFNR2 Datasheet Download
  • ·MC705P6A
  •
  •
  • 573603 KB
  • MC705P6A Datasheet Download
  • ·MC72000
  • FREESCALE [Freescale Semiconductor, Inc]
  • Integrated Bluetooth Radio
  • 1825306 KB
  • MC72000 Datasheet Download
  • ·MC73110
  • ETC [ETC]
  • Advanced 3-Phase Motor Control IC
  • 1391680 KB
  • MC73110 Datasheet Download
  • ·MC74
  • ONSEMI [ON Semiconductor]
  • Serial Digital Temperature Sensor
  • 125392 KB
  • MC74 Datasheet Download
  • ·MC74005N
  • ETC [ETC]
  • 8-function calculator unit co-operating with LED display
  • 153970 KB
  • MC74005N Datasheet Download
  • ·MC74007N
  • ETC [ETC]
  • 8-function calculator unit co-operating with LED display
  • 153970 KB
  • MC74007N Datasheet Download
  • ·MC740-430E
  • ETC [ETC]
  • 47-Gb/s 4:1 Multiplexer
  • 472487 KB
  • MC740-430E Datasheet Download

Related Part Number

MC74HCT04A Relative Products

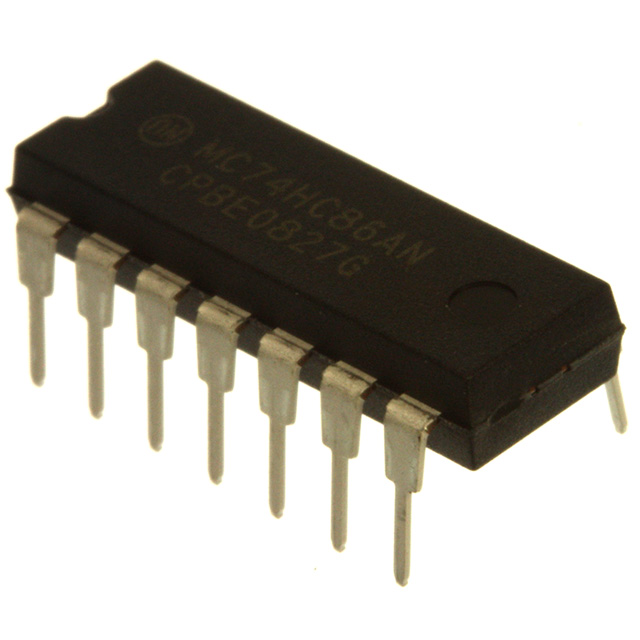

  • MC74HC86ANG
