MFG:ON Package Cooled:TSOP-7.2-48P D/C:6+
MFG: ON
Package Cooled: TSOP-7.2-48P
D/C: 6+
Description: The MC74LCX16245 is a high performance, noninverting 16bit transceiver operating from a 2.7 to 3.6V su...

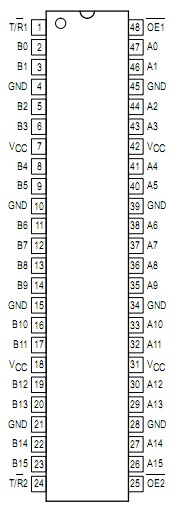

The MC74LCX16245 is a high performance, noninverting 16bit transceiver operating from a 2.7 to 3.6V supply. The device is byte controlled. Each byte has separate Output Enable inputs which can be tied together for full 16bit operation. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX16245 inputs to be safely driven from 5V devices. The MC74LCX16245 is suitable for memory address driving and all TTL level bus oriented transceiver applications.
4.5ns maximum propagation delays support high performance applications. Current drive capability is 24mA at both A and B ports. The Transmit/Receive (T/Rn) inputs determine the direction of data flow through the bidirectional transceiver. Transmit (activeHIGH) enables data from A ports to B ports; Receive (activeLOW) enables data from B to A ports. The Output Enable inputs (OEn), when HIGH, disable both A and B ports by placing them in a HIGH Z condition.
| Symbol | Parameter | Value | Condition | Unit |
| VCC | DC Supply Voltage | 0.5 to +7.0 | V | |
| VI | DC Input Voltage | 0.5 VI +7.0 | V | |
| VO | DC Output Voltage | 0.5 VO +7.0 | Output in 3State | V |
| 0.5 VO VCC + 0.5 |
Note 1. |
V | ||
| IIK | DC Input Diode Current | 50 | VI < GND | mA |
| IOK | DC Output Diode Current | 50 | VO < GND | mA |
| +50 | VO > VCC | mA | ||
| IO | DC Output Source/Sink Current | ±50 | mA | |
| ICC | DC Supply Current Per Supply Pin | ±100 | mA | |
| IGND | DC Ground Current Per Ground Pin | ±100 | mA | |
| TSTG | Storage Temperature Range | 65 to +150 | °C |
MC74LCX16245
PDF/DataSheet Download
