Part Number: MC74LVX574



MFG: ON

Package Cooled: SOP20

D/C: 06+

Description: The MC74LVX574 is an advanced high speed CMOS octal flipflop with 3state outputs. The inputs tolerate ...


Urgent Purchase

MC74LVX574 General Description


The MC74LVX574 is an advanced high speed CMOS octal flipflop with 3state outputs. The inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems.

This 8bit Dtype flipflop is controlled by a clock pulse input and an output enable input. When the output enable input is high, the eight outputs are in a high impedance state.

MC74LVX574 Maximum Ratings

Symbol Parameter Value Unit
VCC Supply Voltage -0.5 to +7.0 V
VIN DC Input Voltage -0.5 to +7.0 V
VOUT DC Output Voltage -0.5 to VCC + 0.5 V
IIK DC Input Diode Current -20 mA
IOK DC Output Diode Current ± 20 mA
IOUT DC Output Current per Pin ± 25 mA
ICC DC Supply Current, VCC and GND Pins ±75 mA
PD Power Dissipation 180 mW
TSTG Storage Temperature -65 to +150 °C

MC74LVX574 Features

• High Speed: tPD = 8.5ns (Typ) at VCC = 3.3V
• Low Power Dissipation: ICC = 4mA (Max) at TA = 25°C
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Low Noise: VOLP = 0.8V (Max)
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; Machine Model > 200V

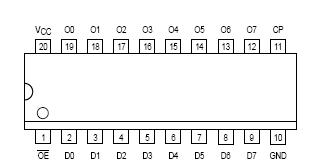

MC74LVX574 Connection Diagram

MC74LVX574 Connection Diagram
