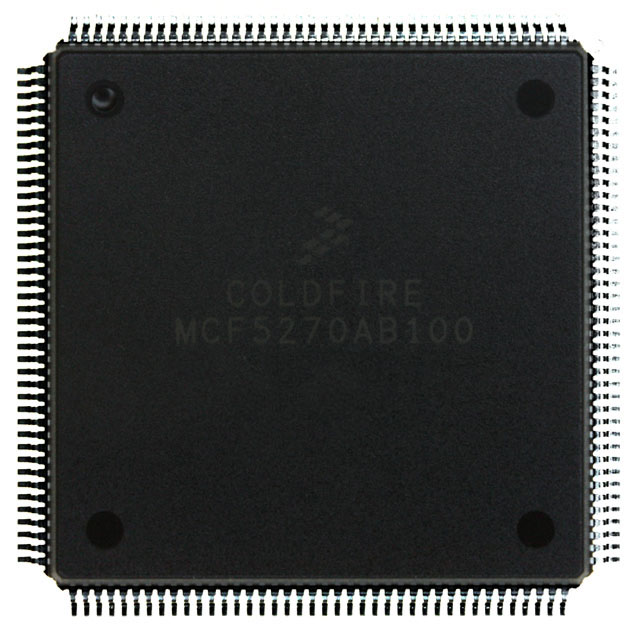

MCF5271 General Description
MCF5271 Features
• Version 2 ColdFire variable-length RISC processor core
- Static operation
- 32-bit address and data path on-chip
- Processor core runs at twice the bus frequency
- Sixteen general-purpose 32-bit data and address registers
- Implements the ColdFire Instruction Set Architecture, ISA_A, with extensions to support the
user stack pointer register, and 4 new instructions for improved bit processing
- Enhanced Multiply-Accumulate (EMAC) unit with four 48-bit accumulators to support 32-bit
signal processing algorithms
- Illegal instruction decode that allows for 68K emulation support
• System debug support
- Real time trace for determining dynamic execution path
- Background debug mode (BDM) for in-circuit debugging
- Real time debug support, with two user-visible hardware breakpoint registers (PC and address
with optional data) that can be configured into a 1- or 2-level trigger
• On-chip memories
- 8-Kbyte cache, configurable as instruction-only, data-only, or split I-/D-cache
- 64-Kbyte dual-ported SRAM on CPU internal bus, accessible by core and non-core bus
masters (e.g., DMA, FEC)
• Fast Ethernet Controller (FEC)
- 10 BaseT capability, half duplex or full duplex
- 100 BaseT capability, half duplex or full duplex
- On-chip transmit and receive FIFOs
- Built-in dedicated DMA controller
- Memory-based flexible descriptor rings
- Media independent interface (MII) to external transceiver (PHY)
• Three Universal Asynchronous Receiver Transmitters (UARTs)
- 16-bit divider for clock generation
- Interrupt control logic
- Maskable interrupts
- DMA support
- Data formats can be 5, 6, 7 or 8 bits with even, odd or no parity
- Up to 2 stop bits in 1/16 increments
- Error-detection capabilities
- Modem support includes request-to-send (URTS) and clear-to-send (UCTS) lines for two UARTs
- Transmit and receive FIFO buffers
• I2C Module
- Interchip bus interface for EEPROMs, LCD controllers, A/D converters, and keypads
- Fully compatible with industry-standard I2C bus
- Master or slave modes support multiple masters
- Automatic interrupt generation with programmable level
• Queued Serial Peripheral Interface (QSPI)
- Full-duplex, three-wire synchronous transfers
- Up to four chip selects available
- Master mode operation only
- Programmable master bit rates
- Up to 16 pre-programmed transfers
• Four 32-bit DMA Timers
- 20-ns resolution at 50 MHz
- Programmable sources for clock input, including an external clock option
- Programmable prescaler
- Input-capture capability with programmable trigger edge on input pin
- Output-compare with programmable mode for the output pin
- Free run and restart modes
- Maskable interrupts on input capture or reference-compare
- DMA trigger capability on input capture or reference-compare
• Four Periodic Interrupt Timers (PITs)
- 16-bit counter
- Selectable as free running or count down
• Software Watchdog Timer
- 16-bit counter
- Low power mode support
• Frequency Modulated Phase Locked Loop (PLL)
- Crystal or external oscillator reference
- 8 to 25 MHz reference frequency for normal PLL mode
- 24 to 50 MHz oscillator reference frequency for 1:1 mode
- Separate clock output pin
- Interrupt Controllers (x2)
Support for up to 41 interrupt sources organized as follows: 34 fully-programmable
interrupt sources and 7 fixed-level external interrupt sources
- Unique vector number for each interrupt source
- Ability to mask any individual interrupt source or all interrupt sources (global mask-all)
- Support for hardware and software interrupt acknowledge (IACK) cycles
- Combinatorial path to provide wake-up from low power modes
• DMA Controller
- Four fully programmable channels
- Dual-address and single-address transfer support with 8-, 16- and 32-bit data capability along
with support for 16-byte (4 x 32-bit) burst transfers
- Source/destination address pointers that can increment or remain constant
- 24-bit byte transfer counter per channel
- Auto-alignment transfers supported for efficient block movement
- Bursting and cycle steal support
- Software-programmable connections between the 12 DMA requesters in the UARTs (3),
32-bit timers (4), plus external logic (4), and the four DMA channels (4)
• External Bus Interface
- Glueless connections to external memory devices (e.g., SRAM, Flash, ROM, etc.)
- SDRAM controller supports 8-, 16-, and 32-bit wide memory devices
- Support for n-1-1-1 burst fetches from page mode Flash
- Glueless interface to SRAM devices with or without byte strobe inputs
- Programmable wait state generator
- 32-bit bidirectional data bus
- 24-bit address bus
- Up to eight chip selects available
- Byte/write enables (byte strobes)
- Ability to boot from external memories that are 8, 16, or 32 bits wide
• Chip Configuration Module (CCM)
- System configuration during reset
- Selects one of four clock modes
- Sets boot device and its data port width
- Configures output pad drive strength
- Unique part identification number and part revision number
- Reset
Separate reset in and reset out signals
Six sources of reset: Power-on reset (POR), External, Software, Watchdog, PLL loss of
clock, PLL loss of lock
Status flag indication of source of last reset
• General Purpose I/O interface
- Up to 61 bits of general purpose I/O
- Bit manipulation supported via set/clear functions
- Unused peripheral pins may be used as extra GPIO
• JTAG support for system level board testing
