Part Number: MCM101525









Description: The MCM101525 is a 4,194,304 bit static random access memory organized as 2,097,152 words of 2 bits. This device featur...


Urgent Purchase

MCM101525 General Description


The MCM101525 is a 4,194,304 bit static random access memory organized as 2,097,152 words of 2 bits. This device features complementary outputs. This circuit is fabricated using high performance silicongate BiCMOS technology.
Asynchronous design eliminates the need for external clocks or timing strobes.

The MCM101525 is available in a 400 mil, 36 lead TAB.
• Fast Access Times: 12, 15 ns
• Equal Address and Chip Select Access Time
• Power Operation: 195 mA Maximum, Active AC



MCM101525 Maximum Ratings

Rating
Symbol
Value
Unit
VEE Pin Potential (to Ground)
VEE
7.0 to + 0.5
V
Voltage Relative to VCC for Any Pin
Except VEE
Vin, Vout
VEE 0.5 to+ 0.5
V
Output Current (per I/O)
Iout
50
mA
Power Dissipation
PD
2.0
W
Temperature Under Bias
Tbias
30 to + 85
°C
Operating Temperature
TJ
0 to + 60
°C
Storage Temperature - Plastic
Tstg
55 to + 125
°C

NOTE: Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are exceeded. Functional operation should be restricted to the OPERATING CONDITIONS. Exposure to higher than recommended voltages for extended periods of time could affect device reliability.

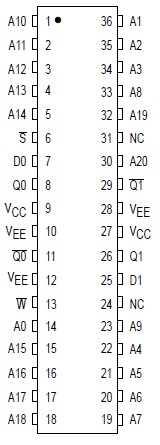

MCM101525 Connection Diagram

MCM101525 Connection Diagram

MCM101525 datasheet

MCM101525
PDF/DataSheet Download

Find MCM101525 Suppliers
