General Description
MCM6209C General Description
The MCM6209C is fabricated using Motorola's highperformance silicongate CMOS technology. Static design eliminates the need for external clocks or timing strobes, while CMOS circuitry reduces power consumption and provides for greater reliability.
This device meets JEDEC standards for functionality and pinout, and is available in plastic dualinline and plastic smalloutline Jleaded packages.
MCM6209C Maximum Ratings
| Rating | Symbol | Value | Unit |
| Power Supply Voltage | VCC | 0.5 to + 7.0 | V |
| Voltage Relative to VSS For Any Pin Except VCC |
Vin, Vout | 0.5 to VCC + 0.5 | V |
| Output Current | Iout | ± 20 | mA |
| Power Dissipation | PD | 1.0 | W |
| Temperature Under Bias | Tbias | 10 to + 85 | |
| Operating Temperature | TA | 0 to + 70 | |
| Storage Temperature - Plastic | Tstg | 55 to + 125 |
MCM6209C Features
• Single 5 V ± 10% Power Supply
• Fully Static - No Clock or Timing Strobes Necessary
• Fast Access Times: 12, 15, 20, 25, and 35 ns
• Equal Address and Chip Enable Access Times
• Output Enable (G ) Feature for Increased System Flexibility and to Eliminate Bus Contention Problems
• Low Power Operation: 135 165 mA Maximum AC
• Fully TTL Compatible - ThreeState Output
• Fully Static - No Clock or Timing Strobes Necessary
• Fast Access Times: 12, 15, 20, 25, and 35 ns
• Equal Address and Chip Enable Access Times
• Output Enable (G ) Feature for Increased System Flexibility and to Eliminate Bus Contention Problems
• Low Power Operation: 135 165 mA Maximum AC
• Fully TTL Compatible - ThreeState Output

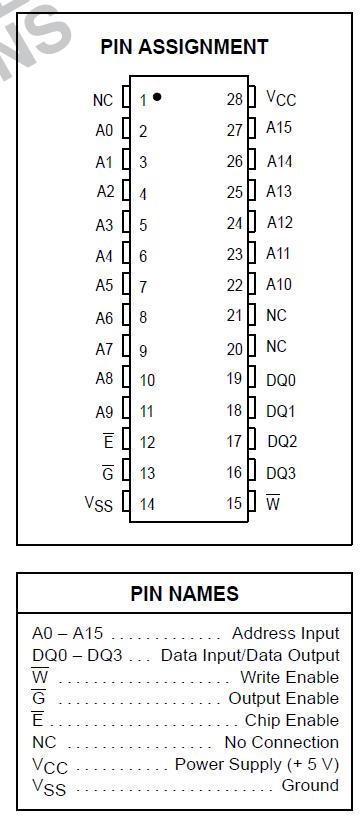

MCM6209C Connection Diagram
