Purchase MCM6229BB, In-stock MCM6229BB From SeekIC.
- Table of contents:
MCM6229BB
-
Suppliers
DataSheet
General Description
MCM6229BB Maximum Ratings
| Rating |
Symbol |
Value |
Unit |
| Power Supply Voltage Relative to VSS |
VCC |
0.5 to 7.0 |
V |
| Voltage Relative to VSS for Any Pin Except VCC |
Vin, Vout |
0.5 to VCC + 0.5 |
V |
| Output Current (per I/O) |
Iout |
± 20 |
mA |
| Power Dissipation |
PD |
1.0 |
W |
| Temperature Under Bias |
Tbias |
10 to + 85 |
°C |
| Operating Temperature |
TA |
0 to + 70 |
°C |
| Storage Temperature |
Tstg |
55 to + 150 |
°C |
exceeded. Functional operation should be restricted to RECOMMENDED OPERATING
CONDITIONS. Exposure to higher than recommended voltages for
extended periods of time could affect device reliability.

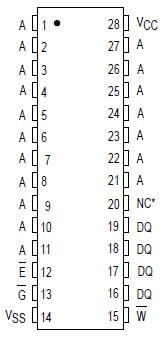

MCM6229BB Connection Diagram
MCM6229BB
PDF/DataSheet Download
- Datasheet: MCM6229BB
- File Size: 129012 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
