General Description
MCM6246 General Description
The MCM6246 is a 4,194,304 bit static random access memory organized as 524,288 words of 8 bits. Static design eliminates the need for external clocks or timing strobes, while CMOS circuitry reduces power consumption and provides for greater reliability.
The MCM6246 is equipped with chip enable ( E) and output enable ( G) pins, allowing for greater system flexibility and eliminating bus contention problems. Either input, when high, will force the outputs into high impedance.
The MCM6246 is available in a 400 mil, 36lead surfacemount SOJ package.
MCM6246 Maximum Ratings
|
Rating |
Symbol |
Value |
Unit |
| Power Supply Voltage Relative to VSS |
VCC |
0.5 to + 7.0 |
V |
| Voltage Relative to VSS for Any Pin Except VCC |
Vin, Vout |
0.5 to VCC + 0.5 |
V |
| Output Current (per I/O) |
Iout |
± 20 |
mA |
| Power Dissipation |
PD |
1.0 |
W |
| Temperature Under Bias |
Tbias |
10 to + 85 |
°C |
| Ambient Temperature |
TA |
0 to + 70 |
°C |
| Storage Temperature - Plastic |
Tstg |
55 to + 150 |
°C |
NOTE: Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are exceeded. Functional operation should be restricted to RECOMMENDED OPERATING CONDITIONS. Exposure to higher than recommended voltages for extended periods of time could affect device reliability.
MCM6246 Features
• Single 5 V ± 10% Power Supply
• Fast Access Time: 17/20/25/35 ns
• Equal Address and Chip Enable Access Time
• All Inputs and Outputs are TTL Compatible
• ThreeState Outputs
• Power Operation: 205/200/185/170 mA Maximum, Active AC
• Fast Access Time: 17/20/25/35 ns
• Equal Address and Chip Enable Access Time
• All Inputs and Outputs are TTL Compatible
• ThreeState Outputs
• Power Operation: 205/200/185/170 mA Maximum, Active AC

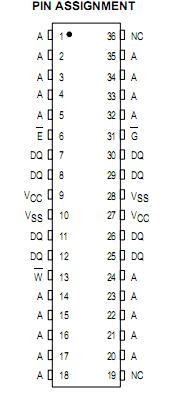

MCM6246 Connection Diagram
MCM6246WJ17
PDF/DataSheet Download
- Datasheet: MCM6246WJ17
- File Size: 129211 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
