Part Number: MCM6343
Description: The MCM6343 is a 4,194,304bit static random access memory organized as 262,144 words of 16 bits. Stati...
- Table of contents:
MCM6343
-
Suppliers
DataSheet
General Description
MCM6343 General Description
The MCM6343 is a 4,194,304bit static random access memory organized as 262,144 words of 16 bits. Static design eliminates the need for external clocks or timing strobes.
The MCM6343 is equipped with chip enable (E), write enable (W), and output enable (G) pins, allowing for greater system flexibility and eliminating bus contention problems. Separate byte enable controls (LB and UB) allow individual
bytes to be written and read. LB controls the lower bits DQL [7:0], while UB controls the upper bits DQU [7:0].
The MCM6343 is available in a 400 mil, 44lead smalloutline SOJ package and a 44lead TSOP Type II package.
• Single 3.3 V Power Supply
• Fast Access Time: 10/11/12/15 ns
• Equal Address and Chip Enable Access Time
• All Inputs and Outputs are TTL Compatible
• Data Byte Control
• Fully Static Operation
• Power Operation: 200/195/190/180 mA Maximum, Active AC
• Commercial (0°C to 70°C) and Industrial Temperature ( 40 to 85°C) Options
MCM6343 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VDD |
Supply Voltage |
0.5 to 4.6 |
V |
|
Vin |
Voltage on Any Pin |
0.5 to VDD + 0.5 |
V |
|
Iout |
Output Current per Pin |
± 20 |
mA |
|
PD |
Package Power Dissipation |
TBD |
W |
|
Tbias |
Temperature Under Bias Commercial Industrial |
10 to 85 45 to 90 |
°C |
|
TA |
Operating Temperature Commercial Industrial |
0 to 70 45 to 85 |
°C |
|
Tstg |
Storage Temperature |
55 to 150 |
°C |
1. Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are exceeded. Functional operation should be restricted to RECOMMENDED OPERATING CONDITIONS. Exposure to higher than recommended voltages for extended
periods of time could affect device reliability.
2. All voltages are referenced to VSS.
3. Power dissipation capability will be dependent upon package characteristics and use environment.

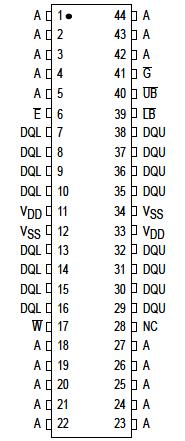

MCM6343 Connection Diagram
MCM6343
