General Description
MCM6706B General Description
The MCM6706B is a 262,144 bit static random access memory organized as 32,768 words of 8 bits. Static design eliminates the need for external clocks or timing strobes.
Output enable (G ) is a special control feature that provides increased system flexibility and eliminates bus contention problems.
The MCM6706B is available in a 300 mil, 28lead surfacemount SOJpackage.
MCM6706B Maximum Ratings
| Rating | Symbol | Value | Unit |
| Power Supply Voltage | VCC | 0.5 to + 7.0 | V |
| Voltage Relative to VSS for Any Pin Except VCC | VIN,VOUT | 0.5 to VCC + 0.5 | V |
| Output Current | Iout | ±30 |
mA |
| Power Dissipation | PD | 2.0 | W |
| Temperature Under Bias | Tbias | 10 to + 85 | |
| Operating Temperature | TA | 0 to + 70 | |
| Storage Temperature - Plastic | Tstg | 55 to + 125 |
MCM6706B Features
Single 5.0 V ± 10% Power Supply
Fully Static - No Clock or Timing Strobes Necessary
All Inputs and Outputs Are TTL Compatible
Three State Outputs
Fast Access Times: MCM6706B8 = 8 ns
MCM6706B10 = 10 ns
MCM6706B12 = 12 ns
Fully Static - No Clock or Timing Strobes Necessary
All Inputs and Outputs Are TTL Compatible
Three State Outputs
Fast Access Times: MCM6706B8 = 8 ns
MCM6706B10 = 10 ns
MCM6706B12 = 12 ns

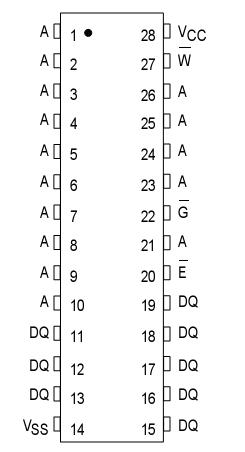

MCM6706B Connection Diagram
MCM6706BJ10
PDF/DataSheet Download
- Datasheet: MCM6706BJ10
- File Size: 105131 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
