Part Number: MCM6709BR
Description: The MCM6709BR is a 262,144 bit static random access memory organized as 65,536 words of 4 bits. Static design eliminate...
- Table of contents:
MCM6709BR
-
Suppliers
DataSheet
General Description
MCM6709BR General Description
The MCM6709BR is a 262,144 bit static random access memory organized as 65,536 words of 4 bits. Static design eliminates the need for external clocks or timing strobes.
Output enable (G) is a special control feature that provides increased system flexibility and eliminates bus contention problems.
The MCM6709BR meets JEDEC standards and is available in a revolutionary pinout 300 mil, 28 lead plastic surfacemount SOJ package.
MCM6709BR Maximum Ratings
| Rating | Symbol | Value | Unit |
| Power Supply Voltage | VCC | 0.5 to + 7.0 | V |
| Voltage Relative to VSS for Any Pin Except VCC |
Vin, Vout | 0.5 to VCC + 0.5 | V |
| Output Current (per I/O) | Iout | ± 30 | mA |
| Power Dissipation | PD | 2.0 | W |
| Temperature Under Bias | Tbias | 10 to + 85 | °C |
| Operating Temperature | TA | 0 to + 70 | °C |
| Storage Temperature - Plastic | Tstg | 55 to + 125 | °C |
NOTE: Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are exceeded. Functional operation should be restricted to RECOMMENDED OPERATING CONDITIONS. Exposure to higher than recommended voltages for extended periods of time could affect device reliability.
MCM6709BR Features
• Single 5 V ± 10% Power Supply
• Fully Static - No Clock or Timing Strobes Necessary
• All Inputs and Outputs are TTL Compatible
• Center Power and I/O Pins for Reduced Noise
• Three State Outputs
• Fast Access Times:
MCM6709BR6 = 6 ns
MCM6709BR7 = 7 ns
MCM6709BR8 = 8 ns
• Fully Static - No Clock or Timing Strobes Necessary
• All Inputs and Outputs are TTL Compatible
• Center Power and I/O Pins for Reduced Noise
• Three State Outputs
• Fast Access Times:
MCM6709BR6 = 6 ns
MCM6709BR7 = 7 ns
MCM6709BR8 = 8 ns

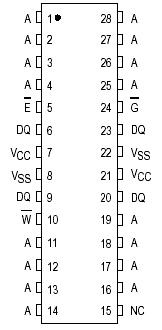

MCM6709BR Connection Diagram
MCM6709BRJ6
PDF/DataSheet Download
- Datasheet: MCM6709BRJ6
- File Size: 104870 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
