MCM67J518
-
Suppliers
DataSheet
General Description
MCM67J518 Maximum Ratings
|
Rating |
Symbol |
Value |
Unit |
| Power Supply Voltage |
VCC |
0.5 to + 7.0 |
V |
| Voltage Relative to VSS for Any Pin Except VCC |
Vin,Vout |
0.5 to VCC + 0.5 |
V |
| Output Current (per I/O) |
Iout |
±30 |
mA |
| Power Dissipation |
PD |
1.6 |
W |
| Temperature Under Bias |
Tbias |
10 to + 85 |
°C |
| Operating Temperature |
TA |
0 to + 70 |
°C |
| Storage Temperature |
Tstg |
55 to + 125 |
°C |
MCM67J518 Features
• Single 5 V ± 5% Power Supply
• Fast Access Time/Fast Cycle Time = 6 ns/100 MHz, 7 ns/80 MHz,9 ns/66 MHz
• Byte Writeable via Dual Write Enables
• Internal Input Registers (Address, Data, Control)
• Output Registers for Pipelined Applications
• Internally SelfTimed Write Cycle
• ADSP, ADSC, and ADV Burst Control Pins
• Asynchronous Output Enable Controlled ThreeState Outputs
• Common Data Inputs and Data Outputs
• 3.3 V I/O Compatible
• High Board Density 52Lead PLCC Package
• ADSP Disabled with Chip Enable (E) Supports Address Pipelining
• Fast Access Time/Fast Cycle Time = 6 ns/100 MHz, 7 ns/80 MHz,9 ns/66 MHz
• Byte Writeable via Dual Write Enables
• Internal Input Registers (Address, Data, Control)
• Output Registers for Pipelined Applications
• Internally SelfTimed Write Cycle
• ADSP, ADSC, and ADV Burst Control Pins
• Asynchronous Output Enable Controlled ThreeState Outputs
• Common Data Inputs and Data Outputs
• 3.3 V I/O Compatible
• High Board Density 52Lead PLCC Package
• ADSP Disabled with Chip Enable (E) Supports Address Pipelining

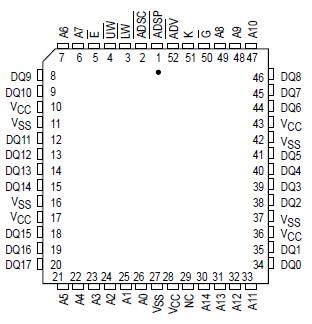

MCM67J518 Connection Diagram
MCM67J518
