General Description
MCM67Q709A General Description
The MCM67Q709A is a 1,179,648bit static random access memory, orga- nized as 131,072 words of 9 bits. It features separate TTL input and output buff- ers, which drive 3.3 V output levels and incorporates input and output registers onboard with high speed SRAM. It also features transparentwrite and data passthrough capabilities.
The synchronous design allows for precise cycle control with the use of an external single clock (K). The addresses (A0 A16), data input (D0 D8), data output (Q0 Q8), write enable (W), chip enable (E), and output enable (G), are registered in on the rising edge of clock (K).
MCM67Q709A Maximum Ratings
|
Rating |
Symbo |
Value |
Unit |
|
Power Supply Voltage |
VCC |
0.5 to + 7.0 |
V |
|
Voltage Relative to VSS for Any Pin Except VCC |
Vin, Vout |
0.5 to VCC + 0.5 |
V |
|
Output Current |
Iout |
± 30 |
mA |
|
Power Dissipation |
PD |
1.5 |
W |
|
Temperature Under Bias |
Tbias |
10 to + 85 |
°C |
|
Operating Temperature |
TA |
0 to + 70 |
°C |
|
Storage Temperature - Plastic |
Tstg |
55 to + 125 |
°C |
MCM67Q709A Features
• Single 5 V ± 5% Power Supply
• Fast Cycle Time: 10 ns Max
• Single Clock Operation
• TTL Input and Output Levels (Outputs LVTTL Compatible)
• Address, Data Input, E, W, G Registers OnChip
• 100 MHz Maximum Clock Cycle Time
• SelfTimed Write
• Separate Data Input and Output Pins
• TransparentWrite and PassThrough
• High Output Drive Capability: 50 pF/Output at Rated Access Time
• Boundary Scan Implementation
• PBGA Package for High Speed Operation
• Fast Cycle Time: 10 ns Max
• Single Clock Operation
• TTL Input and Output Levels (Outputs LVTTL Compatible)
• Address, Data Input, E, W, G Registers OnChip
• 100 MHz Maximum Clock Cycle Time
• SelfTimed Write
• Separate Data Input and Output Pins
• TransparentWrite and PassThrough
• High Output Drive Capability: 50 pF/Output at Rated Access Time
• Boundary Scan Implementation
• PBGA Package for High Speed Operation

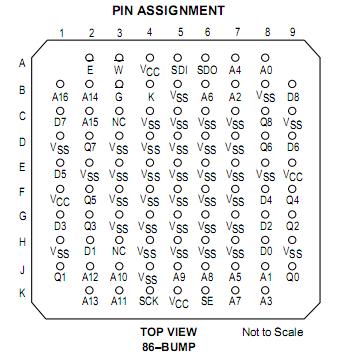

MCM67Q709A Connection Diagram
MCM67Q709A
PDF/DataSheet Download
- Datasheet: MCM67Q709A
- File Size: 143023 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
