MCP23S08
-
Suppliers
DataSheet
General Description
MCP23S08 Maximum Ratings
Ambient temperature under bias........................................................................................-40°C to +125°C
Storage temperature ..........................................................................................................-65°C to +150°C
Voltage on VDD with respect to VSS .................................................................................... ....-0.3V to +5.5V
Voltage on all other pins with respect to VSS (except VDD)...............................................-0.6V to (VDD + 0.6V)
Total power dissipation (Note) ..............................................................................................................700 mW
Maximum current out of VSS pin ..............................................................................................................150 mA
Maximum current into VDD pin .................................................................................................................125 mA
Input clamp current, IIK (VI < 0 or VI > VDD).......................................................................................... ±20 mA
Output clamp current, IOK (VO < 0 or VO > VDD) .................................................................................. ±20 mA
Maximum output current sunk by any output pin .....................................................................................25 mA
Maximum output current sourced by any output pin ..................................................................................25 mA
Note: Power dissipation is calculated as follows: PDIS = VDD x {IDD - IOH} + {(VDD-VOH) x IOH} + (VOL x IOL)
† NOTICE: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
MCP23S08 Features
• 8-bit remote bidirectional I/O port - I/O pins default to input
• High-speed I2C™ interface (MCP23008) - 100kHz - 400kHz - 1.7MHz
• High-speed SPI™ interface (MCP23S08) - 10MHz
• Hardware address pins - Three for the MCP23008 to allow up to eight devices on the bus - Two for the MCP23S08 to allow up to four devices using the same chip-select
• Configurable interrupt output pin - Configurable as active-high, active-low or open-drain
• Configurable interrupt source - Interrupt-on-change from configured defaults or pin change
• Polarity Inversion register to configure the polarity of the input port data
• External reset input
• Low standby current: 1 A (max.)
• Operating voltage:
- 1.8V to 5.5V @ -40°C to +85°C (I-Temp)
- 2.7V to 5.5V @ -40°C to +85°C (I-Temp)
- 4.5V to 5.5V @ -40°C to +125°C (E-Temp)
• High-speed I2C™ interface (MCP23008) - 100kHz - 400kHz - 1.7MHz
• High-speed SPI™ interface (MCP23S08) - 10MHz
• Hardware address pins - Three for the MCP23008 to allow up to eight devices on the bus - Two for the MCP23S08 to allow up to four devices using the same chip-select
• Configurable interrupt output pin - Configurable as active-high, active-low or open-drain
• Configurable interrupt source - Interrupt-on-change from configured defaults or pin change
• Polarity Inversion register to configure the polarity of the input port data
• External reset input
• Low standby current: 1 A (max.)
• Operating voltage:
- 1.8V to 5.5V @ -40°C to +85°C (I-Temp)
- 2.7V to 5.5V @ -40°C to +85°C (I-Temp)
- 4.5V to 5.5V @ -40°C to +125°C (E-Temp)
MCP23S08 Connection Diagram
MCP23S08
PDF/DataSheet Download
- Datasheet: MCP23S08
- File Size: 510283 KB
- Manufacturer: MICROCHIP [Microchip Technology]
- Click here to Download
- ·MCP100
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 227618 KB
- ·MCP100-485DI/TT
- Microchip Technology
- Analog IC
- 324141 KB
- ·MCP100-485HI/TT
- Microchip Technology
- Analog IC
- 299411 KB
- ·MCP100T-485I/TT
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 288386 KB
- ·MCP101
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 227618 KB
- ·MCP101T-485I/TT
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 288386 KB
- ·MCP102
- MICROCHIP
- Micropower Voltage Supervisors
- 419025 KB
- ·MCP102-195E/LB
- MICROCHIP [Microchip Technology]
- Micropower Voltage Supervisors
- 430716 KB
MCP23S08 Relative Products
MCP23018T-E/SS
MCP23018T-E/SO
MCP23018-E/SS
IC I/O EXPANDER I2C 16B 24SSOP
MCP23018-E/SP
IC I/O EXPANDER I2C 16B 28SDIP
MCP23018-E/SO
IC I/O EXPANDER I2C 16B 28SOIC

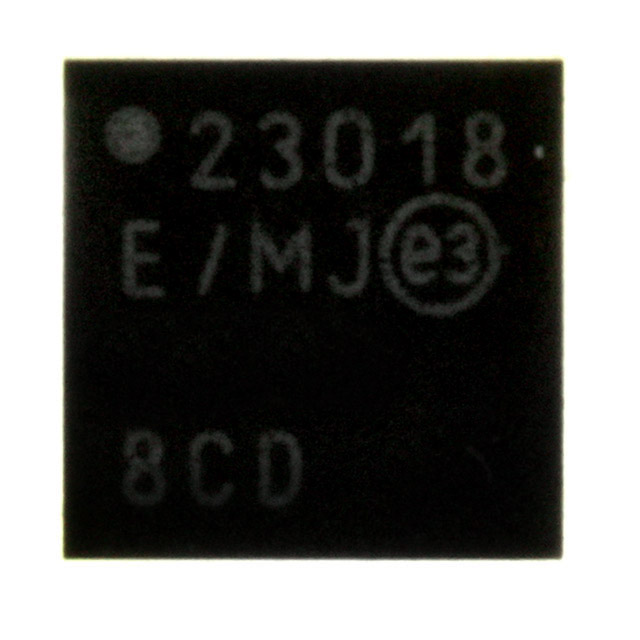

MCP23018-E/MJ
