Purchase MCP4921, In-stock MCP4921 From SeekIC.
Part Number: MCP4921
Description: The Microchip Technology Inc. MCP492X are 2.7 5.5V, low-power, low DNL, 12-Bit Digital-to-Analog Conv...
- Table of contents:
MCP4921
-
Suppliers
DataSheet
General Description
MCP4921 General Description
The Microchip Technology Inc. MCP492X are 2.7 5.5V, low-power, low DNL, 12-Bit Digital-to-Analog Converters (DACs) with optional 2x buffered output and SPI interface.
The MCP492X are DACs that provide high accuracy and low noise performance for industrial applications where calibration or compensation of signals (such as temperature, pressure and humidity) are required. The MCP492X are available in the extended temperature range and PDIP, SOIC, MSOP and TSSOP packages.
The MCP492X devices utilize a resistive string architecture, with its inherent advantages of low DNL error, low ratio metric temperature coefficient and fast settling time. These devices are specified over the extended temperature range. The MCP492X include doublebuffered inputs, allowing simultaneous updates using the LDAC pin. These devices also incorporate a Power-On Reset (POR) circuit to ensure reliable power-up.
MCP4921 Maximum Ratings
Absolute Maximum Ratings †
VDD................................................................................... 6.5V
All inputs and outputs w.r.t ............. AVSS 0.3V to VDD+0.3V
Current at Input Pins ...................................................±2 mA
Current at Supply Pins ...............................................±50 mA
Current at Output Pins ...............................................±25 mA
Storage temperature ..................................-65°C to +150°C
Ambient temp. with power applied .............-55°C to +125°C
ESD protection on all pins ........... 4 kV (HBM), 400V (MM)
Maximum Junction Temperature (TJ) ..........................+150°C
† Notice: Stresses above those listed under "Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
MCP4921 Features
• 12-Bit Resolution
• ±0.2 LSB DNL (typ)
• ±2 LSB INL (typ)
• Single or Dual Channel
• Rail-to-Rail Output
• SPI™ Interface with 20 MHz Clock Support
• Simultaneous Latching of the Dual DACs w/LDAC
• Fast Settling Time of 4.5 s
• Selectable Unity or 2x Gain Output
• 450 kHz Multiplier Mode
• External VREF Input
• 2.7V to 5.5V Single-Supply Operation
• Extended Temperature Range: -40°C to +125°C
• ±0.2 LSB DNL (typ)
• ±2 LSB INL (typ)
• Single or Dual Channel
• Rail-to-Rail Output
• SPI™ Interface with 20 MHz Clock Support
• Simultaneous Latching of the Dual DACs w/LDAC
• Fast Settling Time of 4.5 s
• Selectable Unity or 2x Gain Output
• 450 kHz Multiplier Mode
• External VREF Input
• 2.7V to 5.5V Single-Supply Operation
• Extended Temperature Range: -40°C to +125°C
MCP4921 Typical Application
• Set Point or Offset Trimming
• Sensor Calibration
• Digitally-Controlled Multiplier/Divider
• Portable Instrumentation (Battery-Powered)
• Motor Feedback Loop Control
• Sensor Calibration
• Digitally-Controlled Multiplier/Divider
• Portable Instrumentation (Battery-Powered)
• Motor Feedback Loop Control
MCP4921 Connection Diagram
MCP4921
PDF/DataSheet Download
- Datasheet: MCP4921
- File Size: 3647309 KB
- Manufacturer: MICROCHIP
- Click here to Download
- ·MCP100
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 227618 KB
- ·MCP100-485DI/TT
- Microchip Technology
- Analog IC
- 324141 KB
- ·MCP100-485HI/TT
- Microchip Technology
- Analog IC
- 299411 KB
- ·MCP100T-485I/TT
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 288386 KB
- ·MCP101
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 227618 KB
- ·MCP101T-485I/TT
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 288386 KB
- ·MCP102
- MICROCHIP
- Micropower Voltage Supervisors
- 419025 KB
- ·MCP102-195E/LB
- MICROCHIP [Microchip Technology]
- Micropower Voltage Supervisors
- 430716 KB
MCP4921 Relative Products
MCP4822T-E/SN
MCP4822T-E/MS
IC DAC 12BIT DUAL W/SPI 8MSOP
MCP4822-E/SN
IC DAC 12BIT DUAL W/SPI 8SOIC
MCP4822-E/P
IC DAC 12BIT DUAL W/SPI 8DIP

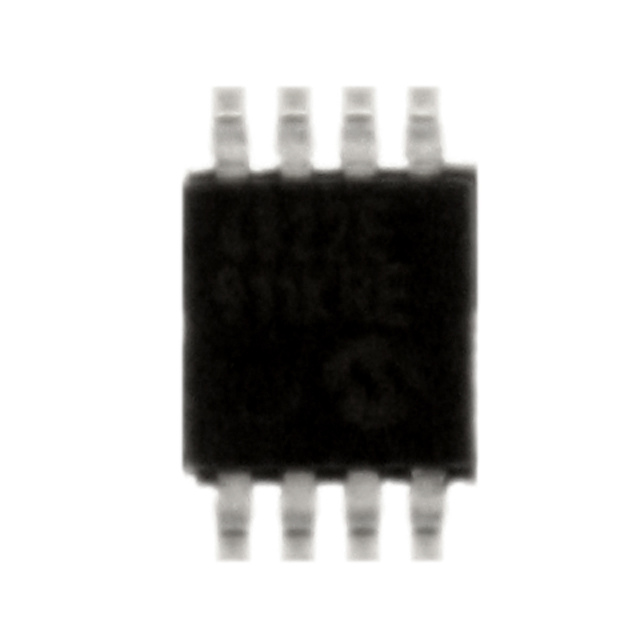

MCP4822-E/MS
