MCP6032

Specifications

Parameter NameValueTemp. Range (°C)-40°C to +125°C Vos Max (V)150# per Package2Iq Typical (A)0.9Iq Max (A)1.35GBWP (kHz)10Operating Voltage Range (V)1.8 to 5.5Device DescriptionLinear Op AmpsInput Voltage Noise Density (nV/rt(Hz))165PSRR Min (dB)70CMRR Min (dB)70Vos/Ta (uV/°C)3Ib (pA)1Aol (dB)115PM (deg)65Isc (mA)23Rail-to-RailIn/Out

Parameter Name	Value
Temp. Range (°C)	-40°C to +125°C
Vos Max (V)	150
# per Package	2
Iq Typical (A)	0.9
Iq Max (A)	1.35
GBWP (kHz)	10
Operating Voltage Range (V)	1.8 to 5.5
Device Description	Linear Op Amps
Input Voltage Noise Density (nV/rt(Hz))	165
PSRR Min (dB)	70
CMRR Min (dB)	70
Vos/Ta (uV/°C)	3
Ib (pA)	1
Aol (dB)	115
PM (deg)	65
Isc (mA)	23
Rail-to-Rail	In/Out

Description

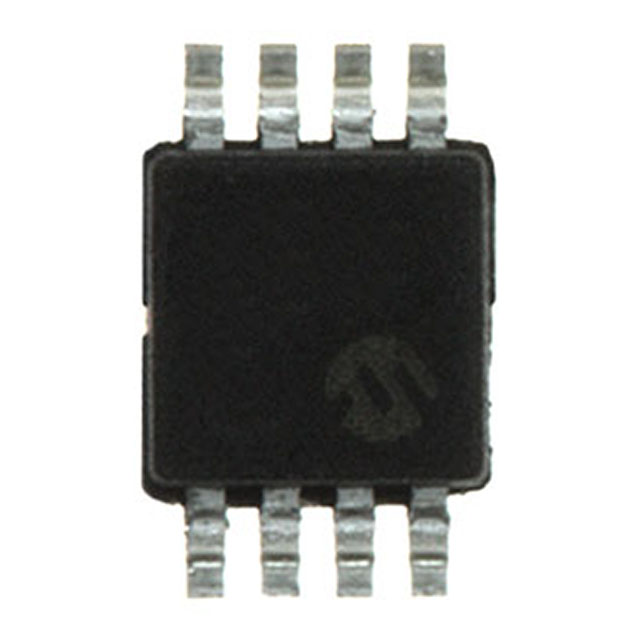

The MCP6032 operational amplifier (op amp) has a gain bandwidth of 10 kHz with a low typical operating current of 900 nA and an offset voltage that is less than 150 uV. The MCP6032 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail input and output swing. The MCP6032 operates with a single supply voltage that can be as low as 1.8V, while drawing less than 1 uA of quiescent current. The MCP6032 is available in standard 8-lead SOIC and MSOP packages.
