General Description
MCP607 General Description
The MCP606, MCP607, MCP608 and MCP609 from Microchip Technology, Inc. are unity gain stable, low offset voltage operational amplifiers capable of precision low power single supply operation. Performance characteristics include ultra low offset voltage (250V, max), rail-to-rail output swing capability, and low input bias current (80pA@85C). These features make this family of amplifiers well suited for single supply precision, high impedance, battery powered applications.
The single MCP606 is available in standard 8-lead PDIP, SOIC, and TSSOP packages. Another version of the single op amp, MCP608 is offered with a Chip Select option in standard 8-lead PDIP, SOIC, and TSSOP packages. The dual MCP607 is offered in standard 8-lead PDIP, SOIC, as well as the TSSOP package. Finally, the quad MCP609 is offered in 14-lead PDIP, SOIC and TSSOP packages. All devices are fully specified from -40 °C to +85 °C with power supplies from 2.5V to 5.5V.
MCP607 Maximum Ratings
VDD ..................................................................................................7.0V
All inputs and outputs w.r.t. ............................. VSS 0.3V to VDD +0.3V
Difference Input voltage ....................................................... |VDD - VSS|
Output Short Circuit Current ..................................................continuous
Current at Input Pin .................................................................... +/-2mA
Current at Output and Supply Pins ............................................ +/-30mA
Storage temperature ....................................................-65°C to +150°C
Ambient temp. with power applied ................................-55°C to +125°C
Soldering temperature of leads (10 seconds) ..............................+300°C
ESD protection on all pins .............................................................. 2 kV
All inputs and outputs w.r.t. ............................. VSS 0.3V to VDD +0.3V
Difference Input voltage ....................................................... |VDD - VSS|
Output Short Circuit Current ..................................................continuous
Current at Input Pin .................................................................... +/-2mA
Current at Output and Supply Pins ............................................ +/-30mA
Storage temperature ....................................................-65°C to +150°C
Ambient temp. with power applied ................................-55°C to +125°C
Soldering temperature of leads (10 seconds) ..............................+300°C
ESD protection on all pins .............................................................. 2 kV
MCP607 Features
• Low Power IDD = 25A, max
• Low Offset Voltage: 250V, max
• Rail-to-Rail Swing at Output
• 80pA, Low Input Bias Current over Temperature
• Specifications rated for 2.5V to 5.5V Supplies
• Unity Gain Stable
• Chip Select Capability with MCP608
• Industrial Temperature range supported
• No Phase Reversal
• Available in Single, Dual, and Quad
• Low Offset Voltage: 250V, max
• Rail-to-Rail Swing at Output
• 80pA, Low Input Bias Current over Temperature
• Specifications rated for 2.5V to 5.5V Supplies
• Unity Gain Stable
• Chip Select Capability with MCP608
• Industrial Temperature range supported
• No Phase Reversal
• Available in Single, Dual, and Quad
MCP607 Typical Application
• Battery Power Instruments
• High Impedance Applications
- Photodiode Pre-amps
- pH probe Buffer Amplifier
- Infrared Detectors
- Precision Integrators
- Charge Amplifier for Piezoelectric Transducers
• Strain Gauges
• Medical Instruments
• Test Equipment
• High Impedance Applications
- Photodiode Pre-amps
- pH probe Buffer Amplifier
- Infrared Detectors
- Precision Integrators
- Charge Amplifier for Piezoelectric Transducers
• Strain Gauges
• Medical Instruments
• Test Equipment
MCP607 Connection Diagram
MCP607
PDF/DataSheet Download
- Datasheet: MCP607
- File Size: 784611 KB
- Manufacturer: Microchip
- Click here to Download
- ·MCP100
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 227618 KB
- ·MCP100-485DI/TT
- Microchip Technology
- Analog IC
- 324141 KB
- ·MCP100-485HI/TT
- Microchip Technology
- Analog IC
- 299411 KB
- ·MCP100T-485I/TT
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 288386 KB
- ·MCP101
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 227618 KB
- ·MCP101T-485I/TT
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 288386 KB
- ·MCP102
- MICROCHIP
- Micropower Voltage Supervisors
- 419025 KB
- ·MCP102-195E/LB
- MICROCHIP [Microchip Technology]
- Micropower Voltage Supervisors
- 430716 KB
MCP607 Relative Products

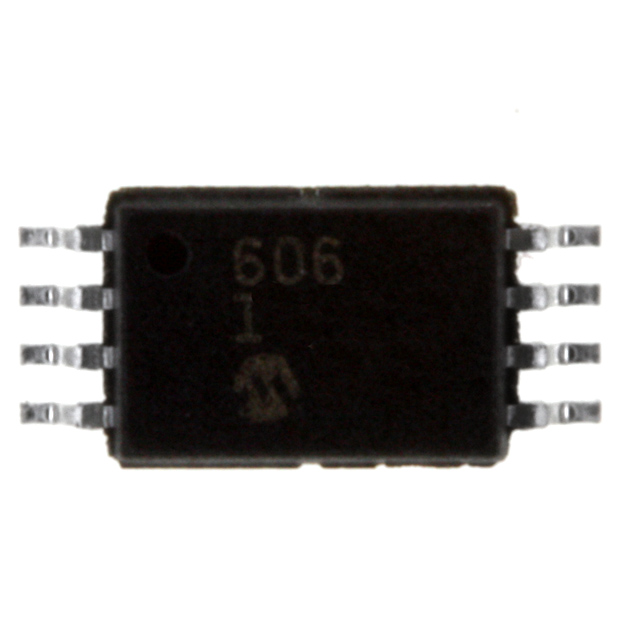

MCP606T-I/ST
