MCP6542

Features:

• Low Quiescent Current: 600 nA/comparator (typ.)
• Rail-to-Rail Input: V_SS - 0.3V to V_DD + 0.3V
• CMOS/TTL-Compatible Output
• Propagation Delay 4 µs (typ.)
• Wide Supply Voltage Range: 1.6V to 5.5V
• Available in Single, Dual and Quad

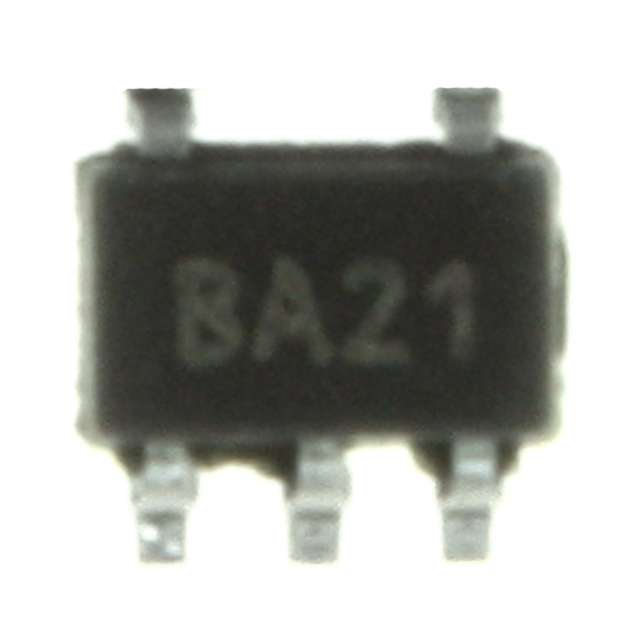

• Single available in SOT-23-5, SC-70-5 packages
• Chip Select (CS) with MCP6543
• Low Switching Current
• Internal Hysteresis: 3.3 mV (typ.)
• Industrial Temperature: -40to +85




Application

• Laptop Computers
• Mobile Phones
• Metering Systems
• Hand-held Electronics
• RC Timers
• Alarm and Monitoring Circuits
• Windowed Comparators
• Multi-vibrators




Pinout






Specifications

Parameter Name	Value
Temp Range (°C)	-40°C to +125°C
IQ Typical (A))	1
Vref (V)	0
Vos Max (V)	7000
Typical Propagation Delay (ns)	4000
# per Package	2
Operating Voltage Range (V)	1.6 to 5.5

V_DD - V_SS .........................................................................7.0V
All inputs and outputs ...................... V_SS 0.3V to V_DD +0.3V
Difference Input voltage ....................................... |V_DD - V_SS|
Output Short-Circuit Current .................................continuous
Current at Input Pins ...................................................±2 mA
Current at Output and Supply Pins ............................±30 mA
Storage temperature ......................................-65 to +150
Maximum Junction Temperature (T_J) .............................+150
ESD protection on all pins (HBM;MM) ......................4 kV; 400V

Description

The Microchip Technology Inc. MCP6542 familyof comparators is offered in single (MCP6541), singlewith chip select (MCP6543), dual (MCP6542) and quad(MCP6544) configurations. The outputs are push-pull(CMOS/TTL compatible) and are capable of drivingheavy DC or capacitive loads.
These comparators are optimized for low power, singlesupplyoperation with greater than rail-to-rail inputoperation. The push-pull output of the MCP6541/2/3/4family supports rail-to-rail output swing and interfaceswith TTL/CMOS logic. The internal input hysteresiseliminates output switching due to internal input noisevoltage, reducing current draw. The output limits supplycurrent surges and dynamic power consumption whileswitching. This product family operates with a singlesupplyvoltage as low as 1.6V and draws less than 1 µA/comparator of quiescent current.
The related MCP6542 family of comparators fromMicrochip has an open-drain output. Used with a pull-up resistor, these devices can be used as level-shifters forany desired voltage up to 10V and in wired-OR logic.

The MCP6542 is a Push-pull, dual comparator. This single-ended device operates from 1.6V to 5.5V, with typical quiescent current of 600 nA and a maximum of 1 microamp. This device is offered in the eight lead PDIP, SOIC and MSOP package.
