General Description
MCP6G03 General Description
The Microchip Technology Inc. MCP6G01/1R/1U/2/3/4 are analog Selectable Gain Amplifiers (SGA). They can be configured for gains of +1 V/V, +10 V/V, and +50 V/V through the Gain Select input pin(s). The Chip Select pin on the MCP6G03 can put it into shutdown to conserve power. These SGAs are optimized for single supply applications requiring reasonable quiescent current and speed.
The single amplifiers MCP6G01, MCP6G01R, MCP6G01U, and MCP6G03, are available in 5-pin SOT-23 package and the dual amplifier MCP6G02, are available in 8-pin SOIC and MSOP packages. The quad amplifier MCP6G04 is available in 14-pin SOIC and TSSOP packages. All parts are fully specified from -40°C to +125°C.
MCP6G03 Maximum Ratings
Absolute Maximum Ratings †
VDD VSS ..........................................................................7.0V
Current at Analog Input Pin (VIN) ....................................±2 mA
Analog Input (VIN) †† ....................... VSS 1.0V to VDD + 1.0V
All other Inputs and Outputs............. VSS 0.3V to VDD + 0.3V
Output Short Circuit Current.......................................continuous
Current at Output and Supply Pins ................................ ±30 mA
Storage Temperature......................................-65°C to +150°C
Junction Temperature......................................................+150°C
ESD protection on all pins (HBM; MM) ..................... 4 kV; 200V
† Notice: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
†† See Section 4.1.4 "Input Voltage and Current Limits".
MCP6G03 Features
• 3 Gain Selections:
- +1, +10, +50 V/V
• One Gain Select Input per Amplifier
• Rail-to-Rail Input and Output
• Low Gain Error: ±1% (max.)
• High Bandwidth: 250 kHz to 900 kHz (typ.)
• Low Supply Current: 110 A (typ.)
• Single Supply: 1.8V to 5.5V
• Extended Temperature Range: -40°C to +125°C
- +1, +10, +50 V/V
• One Gain Select Input per Amplifier
• Rail-to-Rail Input and Output
• Low Gain Error: ±1% (max.)
• High Bandwidth: 250 kHz to 900 kHz (typ.)
• Low Supply Current: 110 A (typ.)
• Single Supply: 1.8V to 5.5V
• Extended Temperature Range: -40°C to +125°C
MCP6G03 Typical Application
• A/D Converter Driver
• Industrial Instrumentation
• Bar Code Readers
• Metering
• Digital Cameras
• Industrial Instrumentation
• Bar Code Readers
• Metering
• Digital Cameras

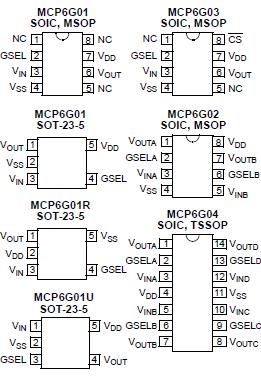

MCP6G03 Connection Diagram
