Part Number: MCP73842
Description: The MCP7384X family of devices are highly advanced linear charge management controllers for use in spa...
- Table of contents:
MCP73842
-
Suppliers
DataSheet
General Description
MCP73842 General Description
The MCP7384X family of devices are highly advanced linear charge management controllers for use in space-limited, cost-sensitive applications. The MCP73841 and MCP73842 combine high accuracy, constant-voltage, constant-current regulation, cell preconditioning, cell temperature monitoring, advanced safety timers, automatic charge termination and charge status indication in space-saving, 10-pin MSOP packages. The MCP73841 and MCP73842 provide complete, fully-functional, stand-alone charge management solutions.
The MCP73843 and MCP73844 employ all the features of the MCP73841 and MCP73842, with the exception of the cell temperature monitor. The MCP73843 and MCP73844 are offered in 8-pin MSOP packages.
The MCP73841 and MCP73843 are designed for applications utilizing single-cell Lithium-Ion or Lithium- Polymer battery packs. Two preset voltage regulation options are available (4.1V and 4.2V) for use with either coke or graphite anodes. The MCP73841 and MCP73843 operate with an input voltage range of 4.5V to 12V.
The MCP73842 and MCP73844 are designed for applications utilizing dual series cell Lithium-Ion or Lithium-Polymer battery packs. Two preset voltage regulation options are available (8.2V and 8.4V). The MCP73842 and MCP73844 operate with an input voltage range of 8.7V to 12V.
The MCP7384X family of devices are fully specified over the ambient temperature range of -40 to +85.
MCP73842 Maximum Ratings
VDD.................................................................................13.5V
All inputs and outputs w.r.t. VSS ..............-0.3 to (VDD+0.3)V
Current at DRV Pin ......................................................±4 mA
Current at STAT1 Pin .................................................±30 mA
Maximum Junction Temperature, TJ ............................. 150
Storage temperature ....................................-65 to +150
ESD protection on all pins:
Human Body Model (1.5 k in Series with 100 pF)...... 2 kV
Machine Model (200 pF, No Series Resistance) .............200V
*Notice: Stresses above those listed under "Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
All inputs and outputs w.r.t. VSS ..............-0.3 to (VDD+0.3)V
Current at DRV Pin ......................................................±4 mA
Current at STAT1 Pin .................................................±30 mA
Maximum Junction Temperature, TJ ............................. 150
Storage temperature ....................................-65 to +150
ESD protection on all pins:
Human Body Model (1.5 k in Series with 100 pF)...... 2 kV
Machine Model (200 pF, No Series Resistance) .............200V
*Notice: Stresses above those listed under "Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
MCP73842 Features
• Linear Charge Management Controllers
• High-Accuracy Preset Voltage Regulation:
- + 0.5% (max)
• Four Preset Voltage Regulation Options:
- 4.1V - MCP73841-4.1, MCP73843-4.1
- 4.2V - MCP73841-4.2, MCP73843-4.2
- 8.2V - MCP73842-8.2, MCP73844-8.2
- 8.4V - MCP73842-8.4, MCP73844-8.4
• Programmable Charge Current
• Programmable Safety Charge Timers
• Preconditioning of Deeply Depleted Cells
• Automatic End-of-Charge Control
• Optional Continuous Cell Temperature Monitoring (MCP73841 and MCP73842)
• Charge Status Output for Direct LED Drive
• Automatic Power-Down when Input Power Removed
• Temperature Range: -40 to 85
• Packaging: MSOP-10 - MCP73841, MCP73842 MSOP-8 - MCP73843, MCP73844
• High-Accuracy Preset Voltage Regulation:
- + 0.5% (max)
• Four Preset Voltage Regulation Options:
- 4.1V - MCP73841-4.1, MCP73843-4.1
- 4.2V - MCP73841-4.2, MCP73843-4.2
- 8.2V - MCP73842-8.2, MCP73844-8.2
- 8.4V - MCP73842-8.4, MCP73844-8.4
• Programmable Charge Current
• Programmable Safety Charge Timers
• Preconditioning of Deeply Depleted Cells
• Automatic End-of-Charge Control
• Optional Continuous Cell Temperature Monitoring (MCP73841 and MCP73842)
• Charge Status Output for Direct LED Drive
• Automatic Power-Down when Input Power Removed
• Temperature Range: -40 to 85
• Packaging: MSOP-10 - MCP73841, MCP73842 MSOP-8 - MCP73843, MCP73844
MCP73842 Typical Application
• Lithium-Ion/Lithium-Polymer Battery Chargers
• Personal Data Assistants
• Cellular Telephones
• Hand-Held Instruments
• Cradle Chargers
• Digital Cameras
• MP3 Players
• Personal Data Assistants
• Cellular Telephones
• Hand-Held Instruments
• Cradle Chargers
• Digital Cameras
• MP3 Players
MCP73842 Connection Diagram
MCP73842
PDF/DataSheet Download
- Datasheet: MCP73842
- File Size: 424892 KB
- Manufacturer: MICROCHIP [Microchip Technology]
- Click here to Download
- ·MCP100
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 227618 KB
- ·MCP100-485DI/TT
- Microchip Technology
- Analog IC
- 324141 KB
- ·MCP100-485HI/TT
- Microchip Technology
- Analog IC
- 299411 KB
- ·MCP100T-485I/TT
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 288386 KB
- ·MCP101
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 227618 KB
- ·MCP101T-485I/TT
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 288386 KB
- ·MCP102
- MICROCHIP
- Micropower Voltage Supervisors
- 419025 KB
- ·MCP102-195E/LB
- MICROCHIP [Microchip Technology]
- Micropower Voltage Supervisors
- 430716 KB
MCP73842 Relative Products
MCP73841T-420I/UN
IC CONTROLLER LI-ION 4.2V 10MSOP
MCP73841T-410I/UN
IC CONTROLLER LI-ION 4.1V 10MSOP
MCP73841T
The MCP73841 family of devices are highly advanced linear charge management controllers for use in space-limited,cost-sensitive applications.The MCP73841 family of devices are fully specified over the ambient temperature range of -40 to +85.The MCP73841T bel...

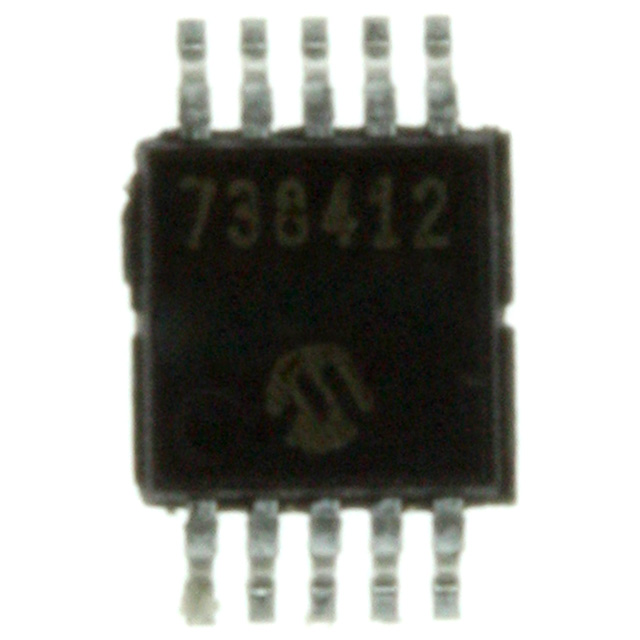

MCP73841-420I/UN
