MCS7715

Features: • Single 3.3V 5.0V operation• Low power• Full compliance with the USB V1.1 specification• Standard 16C450/550 compatible UART• Supports 920kbps data rate• Programmable baud rate generator• Modem control signals• 5, 6, 7, 8-bit character se...

product image

MCS7715 Picture
See larger image
SeekIC No. : 004418767 Detail

MCS7715: Features: • Single 3.3V 5.0V operation• Low power• Full compliance with the USB V1.1 specification• Standard 16C450/550 compatible UART• Supports 920kbps data rateR...

MCS7715 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MCS7715
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 3.3V 5.0V operation
• Low power
• Full compliance with the USB V1.1 specification
• Standard 16C450/550 compatible UART
• Supports 920kbps data rate
• Programmable baud rate generator
• Modem control signals
• 5, 6, 7, 8-bit character selection
• Even, odd, no parity, or force parity generations
• Status report capability
• Single IEEE-1284 compatible printer port
• Fast data rates up to 1.5M Bps
• 16-byte FIFO
• Software program-mable printer mode selects
• Microsoft compatible
• Available in 48-pin LQFP package


Application

• High-speed modems
• Monitoring equipment
• Serial networking
• Printer server
• Portable backup units
• Printer interface


Pinout

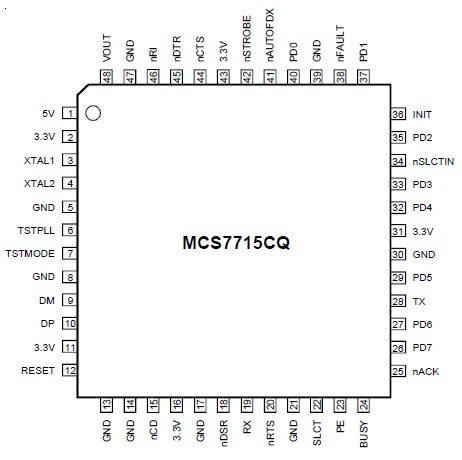

Connection Diagram


Description

The MCS7715 controller provides bridging between the Universal Serial Bus (USB) input an enhanced UART port and an IEEE-1284 bi-directional printer port. This device contains all the necessary logic to communicate with the host computer via the USB bus.

In addition, the MCS7715 contains a 3.3V regulator and operates in bus-powered mode.

The MCS7715 has a reduced frequency (6MHz) crystal oscillator. This combination of features allows signifi-cant cost savings in system design along with straight-forward implementation of serial port functionality into PC peripherals using the host's USB port.
