MCS7784
-
Suppliers
DataSheet
General Description
MCS7784 General Description
The MCS7784 controller provides bridging between the Universal Serial Bus (USB) input and IrDA port. This de-vice contains all the necessary logic to communicate with the host computer via the USB bus. Supports data rate of 2.4Kbps to 115.2Kbps.
In addition, the MCS7784 contains a 3.3V regulator and operates in bus-powered mode. The MCS7784 uses single 12 MHz crystal oscillator.
MCS7784 Features
• Low-power 3.3V CMOS design
• On board 5V to 3.3V voltage regulator
• Single 12 MHz crystal
• IrDA data rates from 2.4 Kbps to 115.2 kbps in SIR mode
• USB specification 1.1 compliant.
• Re-configurable Vendor specific parameters (Vendor ID, Product ID, Release #)
• Support for 4 string descriptors (Language ID, Manufacture ID, Product Name, Serial Number)
• Supports all USB standard commands.
• I2C interface for EEPROM
• Low-profile 28-Pin SSOP package
• On board 5V to 3.3V voltage regulator
• Single 12 MHz crystal
• IrDA data rates from 2.4 Kbps to 115.2 kbps in SIR mode
• USB specification 1.1 compliant.
• Re-configurable Vendor specific parameters (Vendor ID, Product ID, Release #)
• Support for 4 string descriptors (Language ID, Manufacture ID, Product Name, Serial Number)
• Supports all USB standard commands.
• I2C interface for EEPROM
• Low-profile 28-Pin SSOP package
MCS7784 Typical Application
• Cell Phones
• Embedded applications
• Add-on IrDA dingle
• Embedded applications
• Add-on IrDA dingle

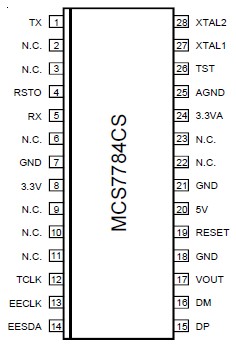

MCS7784 Connection Diagram
MCS7784
PDF/DataSheet Download
- Datasheet: MCS7784
- File Size: 253621 KB
- Manufacturer: ETC [ETC]
- Click here to Download
- ·MCS2
- ETC [ETC]
- PHOTON COUPLED ISOLATOR Ga As INFRARED EMITTING DIODE AND LIGHT ACTIVATED SCR
- 77920 KB
- ·MCS21
- GESS [GE Solid State]
- PHOTON COUPLED ISOLATOR
- 96970 KB
- ·MCS2400
- ETC [ETC]
- PHOTON COUPLED ISOLATOR Ga As INFRARED EMITTING DIODE AND LIGHT ACTIVATED SCR
- 77920 KB
- ·MCS2400X
- ETC [ETC]
- PHOTON COUPLED ISOLATOR Ga As INFRARED EMITTING DIODE AND LIGHT ACTIVATED SCR
- 77920 KB
- ·MCS2401
- GESS [GE Solid State]
- PHOTON COUPLED ISOLATOR
- 96970 KB
- ·MCS38140PG05C
- MOTOROLA [Motorola, Inc]
- GPS Digital Correlator
- 193179 KB
- ·MCS-51
- INTEL [Intel Corporation]
- MCS-51 and MCS-96 Packaging Information
- 606316 KB
- ·MCS7715
- ETC [ETC]
- USB to Combo Serial & Printer Port
- 256212 KB
MCS7784 Relative Products
MCS7780
The MCS7780 controller provides bridging between the Universal Serial Bus (USB) input and an IrDa wireless data communication port. This device contains all the necessary logic to communicate with the host computer via the USB bus.In addition, the MCS7780 co...
MCS7715
The MCS7715 controller provides bridging between the Universal Serial Bus (USB) input an enhanced UART port and an IEEE-1284 bi-directional printer port. This device contains all the necessary logic to communicate with the host computer via the USB bus.In ad...
MCS38140PG05C
The RoadRunner ASIC is a fifth generation GPS digital signal processing integrated circuit. High performance software is included which tracks eight GPS satellites simultaneously. This MCS38140PG05C sets the industry standard for tracking satellites in a hig...

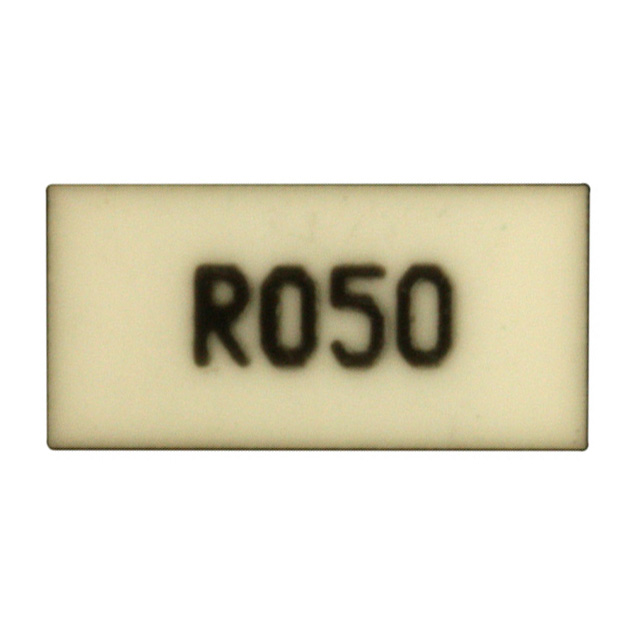

MCS3264R050FER
