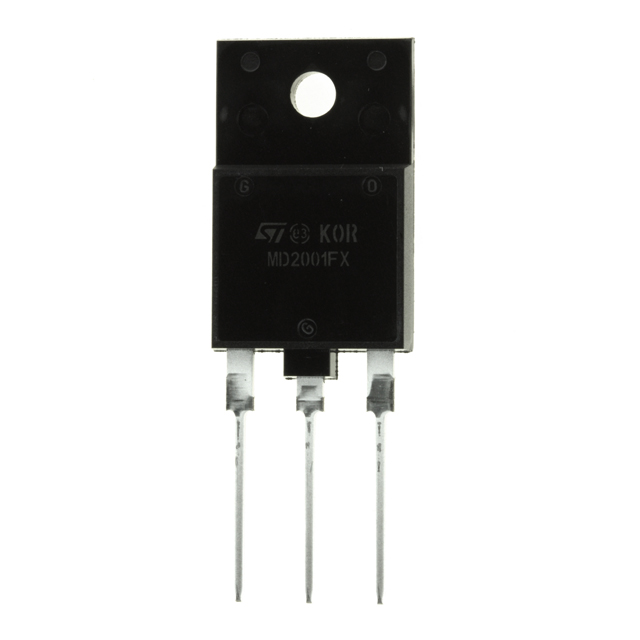

See larger image

SeekIC No. : 00224017 Detail

MD2103DFX: Transistors Switching (Resistor Biased) HI VLT NPN PWR TRANS STANDARD DEF

MD2103DFX Data Sheet

Get Latest Price

Part Number:: MD2103DFX
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MD2103DFP evaluate
Transistors Switching (Resistor Biased) HI VLT NPN PWR TRANS STANDARD DEF
MD2130BD2 evaluate
Power Management IC Development Tools MD2130 DEMO BOARD
MD2130K7-G evaluate
Power Driver ICs HI SPD ULTRASOUND BEAMFORMING DRIVER

Product Details

Quick Details

Configuration :	Single	Transistor Polarity :	NPN
Mounting Style :	Through Hole	Package / Case :	ISOWATT218FX-3
Collector- Emitter Voltage VCEO Max :	700 V	Continuous Collector Current :	6 A
Power Dissipation :	52 W	Maximum Operating Temperature :	+ 150 C
Packaging :	Tube

Description

Typical Input Resistor :
Typical Resistor Ratio :
Maximum Operating Frequency :
Peak DC Collector Current :
Transistor Polarity : NPN
Mounting Style : Through Hole
Maximum Operating Temperature : + 150 C
Configuration : Single
Packaging : Tube
Collector- Emitter Voltage VCEO Max : 700 V
Continuous Collector Current : 6 A
Package / Case : ISOWATT218FX-3
Power Dissipation : 52 W

Parameters:

Technical/Catalog Information	MD2103DFX
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	700V
Current - Collector (Ic) (Max)	6A
Power - Max	52W
DC Current Gain (hFE) (Min) @ Ic, Vce	17 @ 1A, 5V
Vce Saturation (Max) @ Ib, Ic	2.8V @ 1.4A, 5.5A
Frequency - Transition	-
Current - Collector Cutoff (Max)	2mA
Mounting Type	Through Hole
Package / Case	ISOWATT218FX
Packaging	Tube
Drawing Number	497; 7627132; F; 3
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MD2103DFX MD2103DFX
