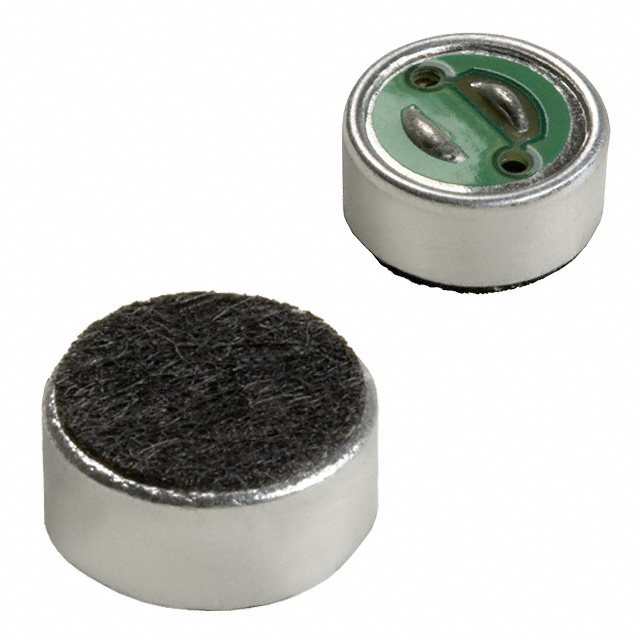

MD6030NSZ-0: MIC CONDENSER ELECT NC -39+-4DB

MD6030NSZ-0 Data Sheet

Get Latest Price

Part Number:: MD6030NSZ-0
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MD60-19P evaluate
US $.81 - 1.04 / Piece

HDMI / Displayport / DVI Connectors 19P M R/A RECEPT SMT BRD MNT HDMI
MD60-19PA evaluate
US $1.25 - 1.66 / Piece

HDMI / Displayport / DVI Connectors 19P M R/A RECEPT SMT HDMI STANDRD CONNECT
MD6022APC-0 evaluate
MIC CONDENSER ELECT -42+-3DB PIN

Product Details

Quick Details

Series:	MD	Manufacturer:	Knowles Acoustics
Type:	Electret Condenser	Output Type:	Analog
Operating Supply Voltage :	2.6 V to 3.6 V	Direction:	Noise Cancelling
Frequency Range:	300Hz ~ 6kHz	Sensitivity:	-39dB ±4dB
S/N Ratio:	55dB	Impedance:	2.2 kOhm
Voltage - Rated:	3V	Current - Supply:	500µA
Port Location:	Top	Seal Rating:	None
Termination:	Solder Pads	Size / Dimension:	6.00mm Dia
Height (Max):	2.70mm	Shape:	Circular

Description

Type: Electret Condenser
Output Type: Analog
Impedance: 2.2 kOhm
Current - Supply: 500µA
Port Location: Top
Seal Rating: None
Shape: Circular
Packaging: Bulk
Termination: Solder Pads
Size / Dimension: 6.00mm Dia
S/N Ratio: 55dB
Direction: Noise Cancelling
Manufacturer: Knowles Acoustics
Voltage - Rated: 3V
Height (Max): 2.70mm
Series: MD
Frequency Range: 300Hz ~ 6kHz
Sensitivity: -39dB ±4dB

Parameters:

Technical/Catalog Information	MD6030NSZ-0
Vendor	Knowles Acoustics
Category	Audio Products
Sensitivity	-39dB ±4dB
Voltage - Rated	3V
Current	500A
Type	Electret Condenser
Size / Dimension	Circular - 6mm Dia x 2.7mm H
Frequency	300Hz ~ 6kHz
S/N Ratio	55dB
Filter Type	-
Impedance	2.2K Ohm
Termination	Solder Pads
Direction	Noise Cancelling
Port Location	Top
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MD6030NSZ 0 MD6030NSZ0 423 1019 ND 4231019ND 423-1019
