Part Number: MH88620IN
Description: The Mitel MH88620IN SLIC provides all of the functions required to interface 2-wire off premise subscriber loops to a s...
- Table of contents:
MH88620IN
-
Suppliers
DataSheet
General Description
MH88620IN General Description
The Mitel MH88620IN SLIC provides all of the functions required to interface 2-wire off premise subscriber loops to a serial TDM, PCM, switching network of a modern PBX. The MH88620IN is manufactured using thick film hybrid technology which offers high voltage capability, reliability and high density resulting in significant printed circuit board area savings. A complete line card can be implemented with very few external components.
MH88620IN Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Units | |
|
1 |
Supply Voltages |
LGND -VBat |
65 |
V | |
|
VDD -GND |
6 |
V | |||
|
GND - VEE |
6 |
V | |||
|
2 |
Storage Temperature |
TS |
-40 |
+125 |
°C |
MH88620IN Features
• 600 ohm input impedance
• Externally selectable network balances
• Transformerless 2-4 wire conversion
• Programmable constant resistance feed
• Off-hook and dial pulse detection
• High immunity to externally induced longitudinal currents
• Auto ring trip
• On-hook transmission (ANI) capability
• Minimum protection circuitry required
• Compatible with requirements of CDOT DOC/ FCC, CSA/UL,CCITT
• Excellent power dissipation (SIL vertical mounting)
• Externally selectable network balances
• Transformerless 2-4 wire conversion
• Programmable constant resistance feed
• Off-hook and dial pulse detection
• High immunity to externally induced longitudinal currents
• Auto ring trip
• On-hook transmission (ANI) capability
• Minimum protection circuitry required
• Compatible with requirements of CDOT DOC/ FCC, CSA/UL,CCITT
• Excellent power dissipation (SIL vertical mounting)
MH88620IN Typical Application
• On/Off-Premise PBX Line Cards
• Central Office Line Cards
• Central Office Line Cards

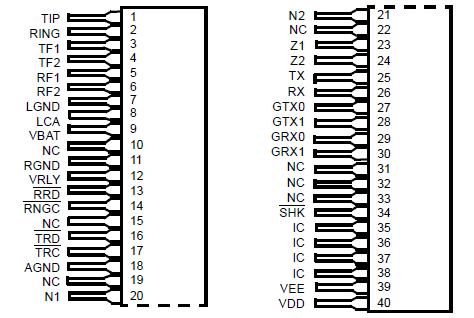

MH88620IN Connection Diagram
