Purchase MH88632, In-stock MH88632 From SeekIC.
Part Number: MH88632
Description: The Mitel MH88632 Central Office Trunk Interface circuit provides a complete audio and signalling link between audio sw...
- Table of contents:
MH88632
-
Suppliers
DataSheet
General Description
MH88632 General Description
The Mitel MH88632 Central Office Trunk Interface circuit provides a complete audio and signalling link between audio switching equipment and a central office. The functions provided by the MH88632 include 2-4 Wire Hybrid conversion, programmable transmit and receive gains, programmable line impedance and programmable network balance. The device is fabricated using thick film hybrid technology which incorporates various technologies for optimum circuit design and very high reliability.
MH88632 Maximum Ratings
|
Parameter |
Sym |
Min |
Max |
Units | |
|
1 |
DC Supply Voltages |
VDD |
-0.3 |
7 |
V |
|
VEE |
0.3 |
-7 |
V | ||
|
2 |
DC Ring Relay Voltage |
VRLY |
-0.3 |
20 |
V |
|
3 |
Storage Temperature |
TS |
-55 |
+125 |
°C |
MH88632 Features
• Loop start and ground start capabilities
• Transformerless 2-4 wire conversion
• Programmable transmit/receive gain with 0dB defaults
• Programmable input impedance with 600 and 900 defaults
• Programmable network balance with 600, 900, and AT&T compromise default
• One loop start & two ground start relay drivers
• Line state detection outputs
• Forward loop, reverse loop, ring ground, tip ground, ringing voltage
• +5V operation
• On-hook audio reception (to accommodate ANI)
• Transformerless 2-4 wire conversion
• Programmable transmit/receive gain with 0dB defaults
• Programmable input impedance with 600 and 900 defaults
• Programmable network balance with 600, 900, and AT&T compromise default
• One loop start & two ground start relay drivers
• Line state detection outputs
• Forward loop, reverse loop, ring ground, tip ground, ringing voltage
• +5V operation
• On-hook audio reception (to accommodate ANI)
MH88632 Typical Application
Interface to Central Office for:
• PBX
• Key Telephone System
• Channel bank
• Voice Mail
• Terminal Equipment
• Digital Loop Carrier
• PBX
• Key Telephone System
• Channel bank
• Voice Mail
• Terminal Equipment
• Digital Loop Carrier

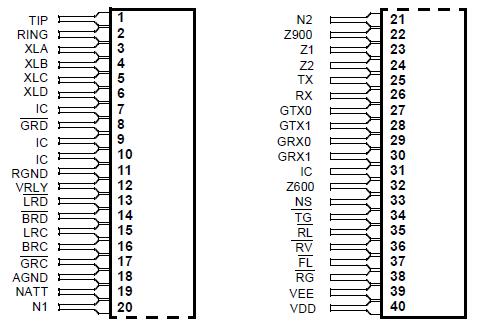

MH88632 Connection Diagram
MH88632
