MH88632B General Description


The Mitel MH88632B Central Office Interface Circuit provides a complete analog and signalling link between audio switching equipment and a subscriber line. The device is available in a single in line package for high packing densities or in a 90° package for reduced card clearance.

The device is fabricated using thick film hybrid technology for optimum circuit design and very high reliability.

MH88632B Maximum Ratings
Parameter
Sym
Min
Max
Units
Comments
1
DC Supply Voltages)
VCC
-0.3
7
V
VEE
0.3
-7
V
2
DC Relay Voltage
VRLY
-0.3
20
V
3
Storage Temperature
TS
-55
+125
°C
4
Ring Trip Current
ITRIP
180
mArms
250ms 10% duty cycle or
500ms single shot

MH88632B Features

• Supports Loop Start and Ground Start protocols
• 2-4 Wire conversion
• Programmable Input Impedance, Network Balance Impedance and gains
• Three relay drivers
• Line state detection outputs
• 15mA operation allowing long line length capability
• On-hook reception for Caller Line Identification
• Meets FCC Part 68 Leakage Current Requirements

MH88632B Typical Application

Interface to Central Office telephone line for
• PBX
• Key Telephone System
• Terminal Equipment
• Digital Loop Carrier
• Wireless Local Loop

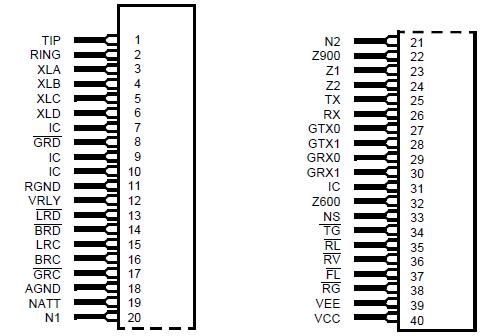

MH88632B Connection Diagram

MH88632B Connection Diagram

MH88632B datasheet

MH88632B
PDF/DataSheet Download

  • Datasheet: MH88632B
  • File Size: 97691 KB
  • Manufacturer: MITEL [Mitel Networks Corporation]
  • Click here to Download
