Part Number: MH88634B
Description: The Mitel MH88634-2 Central Office Interface Circuit trunk provides a complete analogue and signalling link between aud...
- Table of contents:
MH88634B
-
Suppliers
DataSheet
General Description
MH88634B General Description
The Mitel MH88634-2 Central Office Interface Circuit trunk provides a complete analogue and signalling link between audio switching equipment and a telephone Line. The device is available in a single in line package for high packing densities or with a lead frame formed at 90° for low clearance applications.
The device is fabricated as a thick film hybrid incorporating various technologies for optimum circuit design and very high reliability.
This part supercedes the MH88634-2 and is pin for pin compatible.
We advise that the B rev parts are fully tested. However, we do not expect to see changes between MH88634-2 and MH88634BV-2.
The component design has been changed to improve the general performance of the part. It is also now capable of operating at a 24V battery.
MH88634B Maximum Ratings
|
Parameter |
Sym |
Min |
Max |
Units |
Comments | |
|
1 |
DC Supply Voltages) |
VCC |
-0.3 |
7 |
V |
|
|
VEE |
0.3 |
-7 |
V |
|||
|
2 |
DC Ring Relay Voltage |
VRLY |
-0.3 |
18 |
V |
|
|
3 |
Storage Temperature |
TS |
-55 |
+125 |
°C |
|
|
4 |
Ring Trip Current |
ITRIP |
180 |
mArms |
250ms 10% duty cycle or 500ms single shot |
MH88634B Features
• Loop Start Trunk Interface
• 600 & 900 Input Impedance
• 2-4 Wire Conversion
• Line state Detection Outputs:
• - Forward Loop
• - Reverse Loop
• - Ringing Voltage
• - Switch Hook
• One Relay Driver
• On-Hook Reception
• Small footprint area
• Meets FCC Part 68 Leakage Current Requirements
• 600 & 900 Input Impedance
• 2-4 Wire Conversion
• Line state Detection Outputs:
• - Forward Loop
• - Reverse Loop
• - Ringing Voltage
• - Switch Hook
• One Relay Driver
• On-Hook Reception
• Small footprint area
• Meets FCC Part 68 Leakage Current Requirements
MH88634B Typical Application
Interface to Central Office for:
• PABX
• Key Telephone Systems
• Channel Bank
• Voice Mail
• Terminal Equipment
• Digital Loop Carrier
• Optical Multiplexer
• PABX
• Key Telephone Systems
• Channel Bank
• Voice Mail
• Terminal Equipment
• Digital Loop Carrier
• Optical Multiplexer

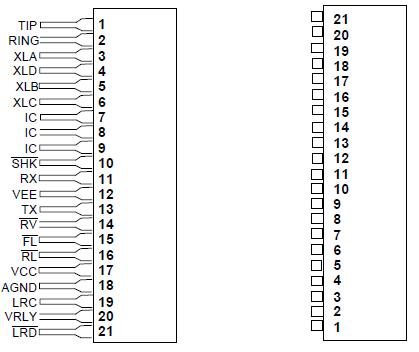

MH88634B Connection Diagram
MH88634B
