General Description
MH88634CV-K General Description
The Zarlink MH88634CV-K Central Office Interface Circuit trunk provides a complete analog and signalling link between audio switching equipment and a telephone line.
The device is fabricated as a thick film hybrid incorporating various technologies for optimum circuit design and very high reliability.
The component design has been changed to improve the general performance of the part. It is also now capable of operating at a 24V battery and on hook reception.
The main difference between the MH88634BV-2 and MH88634CV-K is that SHK is active high on the CV-K.
MH88634CV-K Maximum Ratings
|
Parameters |
Sym |
Min |
Max |
Units |
Comments | |
|
1 |
DC Supply Voltages |
VCC VEE |
-0.3 0.3 |
-7 -7 |
V V |
|
|
2 |
DC Ring Relay Voltage |
VRLY |
-0.3 |
18 |
V |
|
|
3 |
Storage Temperature |
TS |
-55 |
+125 |
°C |
|
|
4 |
Ring Trip Current |
ITRIP |
|
180 |
mArms |
250ms 10% duty cycle or 500ms single shot |
MH88634CV-K Features
• Loop Start Trunk Interface
• 600
• 2-4 Wire Conversion
• Line state Detection Outputs:
• Forward Loop
• Reverse Loop
• Ringing Voltage
• Switch Hook
• One Relay Driver
• On-Hook Reception
• Small footprint area
• Meets FCC Part 68 Leakage Current Requirements
• 600
• 2-4 Wire Conversion
• Line state Detection Outputs:
• Forward Loop
• Reverse Loop
• Ringing Voltage
• Switch Hook
• One Relay Driver
• On-Hook Reception
• Small footprint area
• Meets FCC Part 68 Leakage Current Requirements
MH88634CV-K Typical Application
• PABX
• Key Telephone Systems
• Channel Bank
• Voice Mail
• Terminal Equipment
• Key Telephone Systems
• Channel Bank
• Voice Mail
• Terminal Equipment

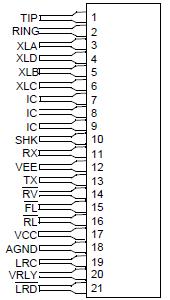

MH88634CV-K Connection Diagram
MH88634CV-K
